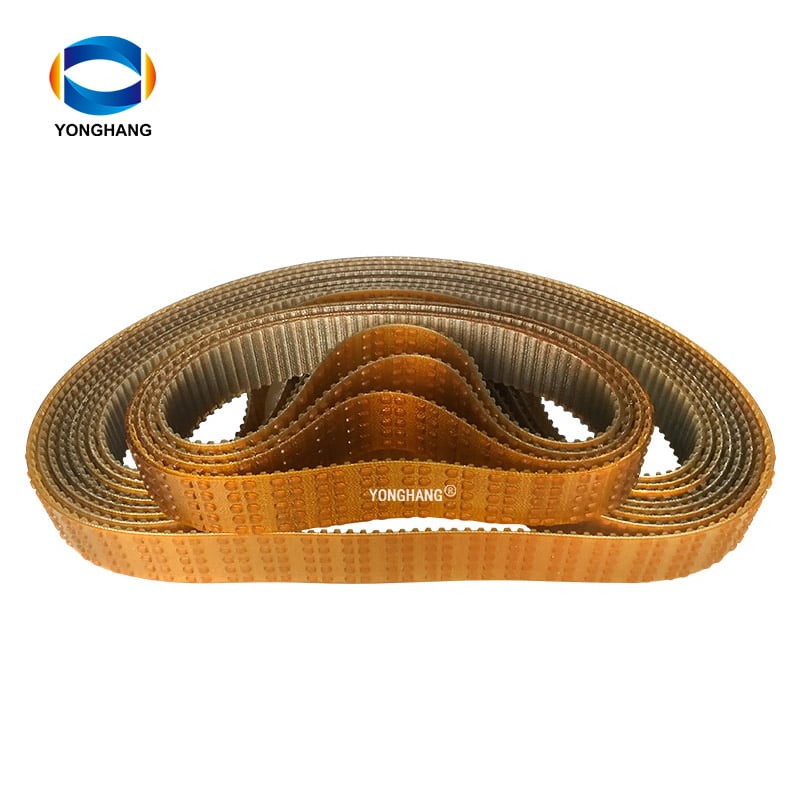

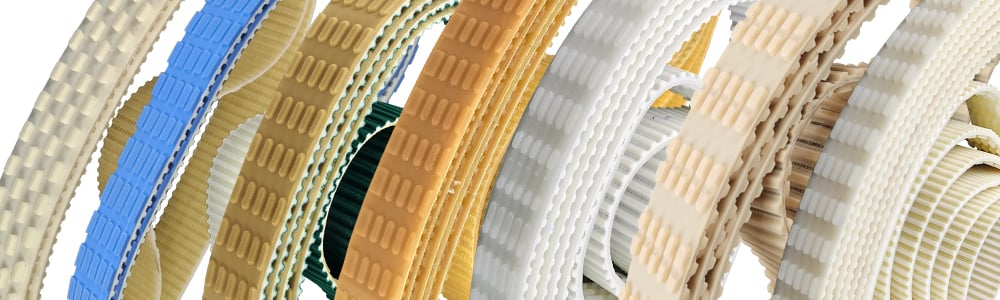

Sausage Timing Belts
Yonghangbelt Sausage Belts are designed for Sausage Feeders or Sausage Cutting Machines. Tooth profiles include T5, T9 and T10.
Sausage Belts are potential replacement belts for sausage feeders or sausage cutting machines such as Inotec Delinker, Ari Makina, Duker-Rex, Finova, Handtmann, Hitec, Signal-Pack, Vemag, Risco, Inox Meccanica, Seydelmann.
Sausage polyurethane synchronous belts usually consist of polyurethane body and steel cord, while custom materials available upon request. Special cords include aramid (kevlar), stainless steel and carbon fiber.
- Introduction
Introduction
Applications
– Meat Industry, belts for transporting sausages
Unique Characteristics
– Made of environmentally friendly materials
– Aramid kevlar or steel cord reinforcement
– Hardness: 80 Shore A
– Heat resistance on operating temperature 80 C (on short run up to 100 C Degrees)
– Good behavior at low temperature
– Very good resistance to hydrolysis
– Good resistance to abrasion
– Good resistance to oil, solvents, hydrocarbons
– Loadability is equal with normal PU timing belts

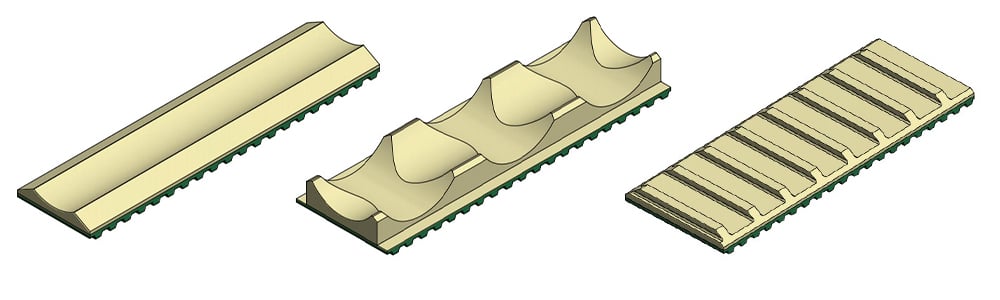

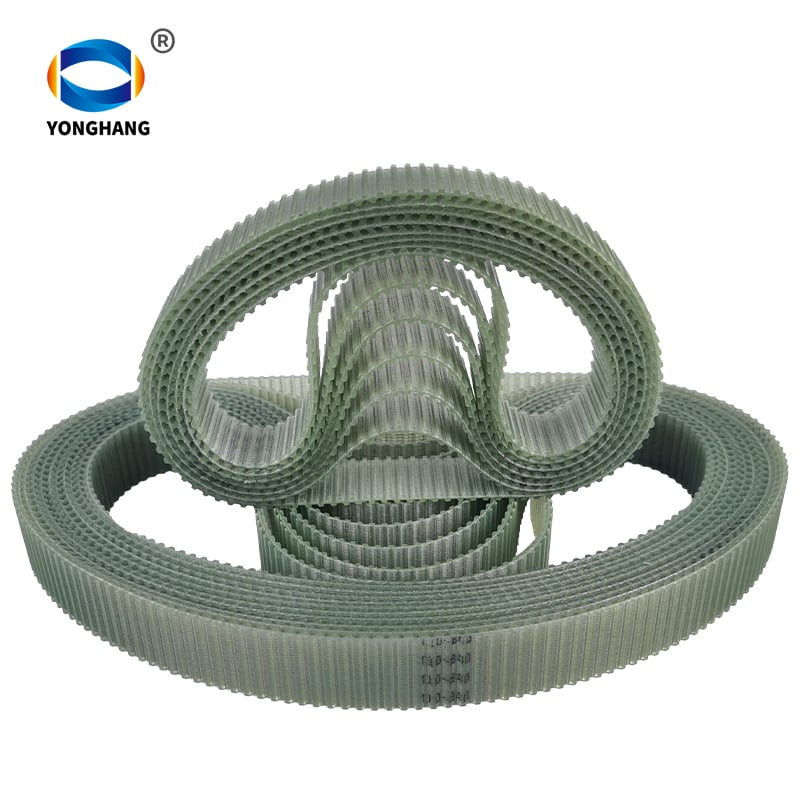

Sausage Timing Belts T5,T9 Size :
| Part Number | Pitch [mm] | Length [mm] | Width [mm] | No of Teeth | Picture |
| T5-510-30 | 5 | 510 | 30 | 102 |  |
| T5-840-30 | 5 | 840 | 30 | 168 | |
| T5-625-30 | 5 | 625 | 30 | 125 | |
| T9-513-32 | 9 | 513 | 32 | 57 |  |
| T9-837-32 | 9 | 837 | 32 | 93 | |
| T5-510-32 | 5 | 510 | 32 | 102 | |
| T5-840-32 | 5 | 840 | 32 | 168 | |
| T9-513-32 | 9 | 513 | 32 | 57 |  |
| T9-837-32 | 9 | 837 | 32 | 93 | |
| T5-510-32 | 5 | 510 | 32 | 102 | |
| T5-840-32 | 5 | 840 | 32 | 168 | |
| T5-625-30 | 5 | 625 | 30 | 125 | |
| T5-910-32 | 5 | 910 | 32 | 182 |  |
| T5-840-32 | 5 | 840 | 32 | 168 | |
| T5-625-32 | 5 | 625 | 32 | 125 | |
| T5-350-32 | 5 | 350 | 32 | 70 | |
| T5-510-32 | 5 | 510 | 32 | 102 | |
| T9-837-32 | 9 | 837 | 32 | 93 | |
| T9-513-32 | 9 | 513 | 32 | 57 | |
| T5-840-32 | 5 | 840 | 32 | 168 |  |
T5-625-32 |
5 | 625 | 32 | 125 | |
| T5-510-32 | 5 | 510 | 32 | 102 | |
| T5-310-32 | 5 | 310 | 32 | 62 | |
| T5-1100-32 | 5 | 1100 | 32 | 220 | |
| T5-580-32 | 5 | 580 | 32 | 116 | |
| T5-1105-30 | 5 | 1105 | 30 | 221 | |
| T5-350-30 | 5 | 350 | 30 | 70 | |
| T5-330-30 | 5 | 330 | 30 | 66 |

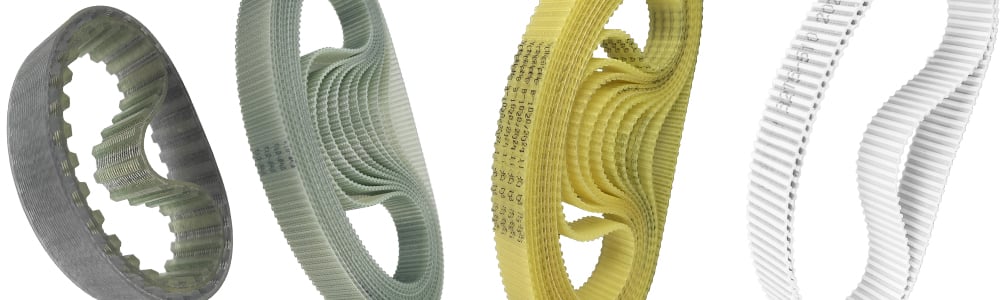

Sausage Timing Belts Double-sided teeth size：
| Part Number | Color | Pitch [mm] | Length [mm] | Width [mm] | No of Teeth | Picture |
| 47-DBT9-1350 | White | DBT9 | 1350 | 47 | 150 | |
| 47-DBT9-1350 | Transparent | DBT9 | 1350 | 47 | 150 | |
| 30-DBT5-850 | Transparent | DBT5 | 850 | 30 | 170 |  |
| 30-DBT5-460 | Transparent | DBT5 | 460 | 30 | 92 | |
| 50-DBT10-1320 | Transparent | DBT10 | 1320 | 50 | 132 | |
| 32-DBT5-625 | Transparent | DBT5 | 625 | 32 | 125 | |
| 32-DBT5-510 | Transparent | DBT5 | 510 | 32 | 102 | |
| 32-DBT5-840 | Transparent | DBT5 | 840 | 32 | 168 | |
| 22-T9-279 | Transparent | T9 | 279 | 22 | 31 |  |
| 23-T9-279 | Transparent | T9 | 279 | 23 | 31 | |
| 32-T9-279 | Transparent | T9 | 279 | 32 | 31 |

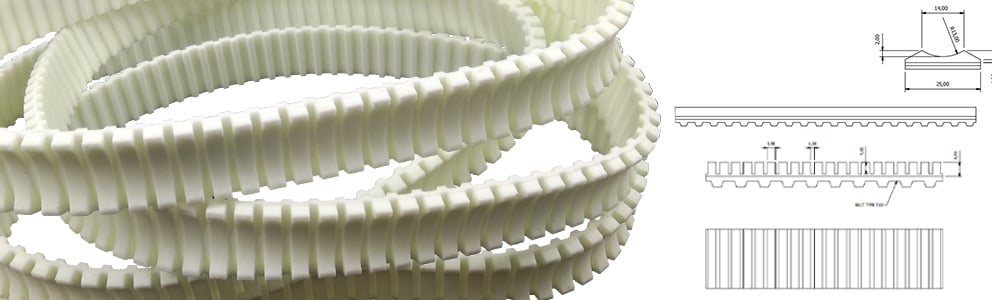

Sausage Timing Belts L size:
| Part No1 | Part No2 | Length [mm] | Pitch [mm] | Width [mm] | No. of Teeth | Picture |
| 258L126 | 32-L-657.23 | 657.23 | 9.525" | 32 | 69 |  |
| 270L126 | 32-L-685.8 | 685.8 | 9.525" | 32 | 72 | |
| 315L126 | 32-L-800.1 | 800.1 | 9.525" | 32 | 84 | |
| 371L126 | 32-L-942.9 | 942.9 | 9.525" | 32 | 99 | |
| 394L126 | 32-L-1000.1 | 1000.1 | 9.525" | 32 | 105 |
| Part Number | Pitch [mm] | Length [mm] | Width [mm] |
Coated thickness [mm] |
No of Teeth |
| 32-T5-545+10mm | 5 | 545 | 32 | 10 | 109 |
| 25-T5-1775+8mm | 5 | 1775 | 25 | 8 | 355 |
| 25-T5-1645+8mm | 5 | 1645 | 25 | 8 | 329 |
| 32-T5-1750+8mm | 5 | 1750 | 32 | 8 | 350 |
| 32-T5-1160+8mm | 5 | 1160 | 32 | 8 | 232 |
| 32-T5-1190+8mm | 5 | 1190 | 32 | 8 | 238 |
| 32-T5-1150+8mm | 5 | 1150 | 32 | 8 | 230 |
| 25-T5-1775+8mm | 5 | 1750 | 25 | 8 | 355 |
| 45-T5-1750+8mm | 5 | 1750 | 45 | 8 | 350 |
| 25-T10-4710+6mm | 10 | 4710 | 25 | 6 | 471 |
| 25-T10-6300+6mm | 10 | 6300 | 25 | 6 | 630 |
