16A Sprocket
16A Sprocket compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Yonghang summarizes the defects of past products, and continuously improves them. The specifications of 16A Sprocket can be customized according to your needs.
- Introduction
Introduction

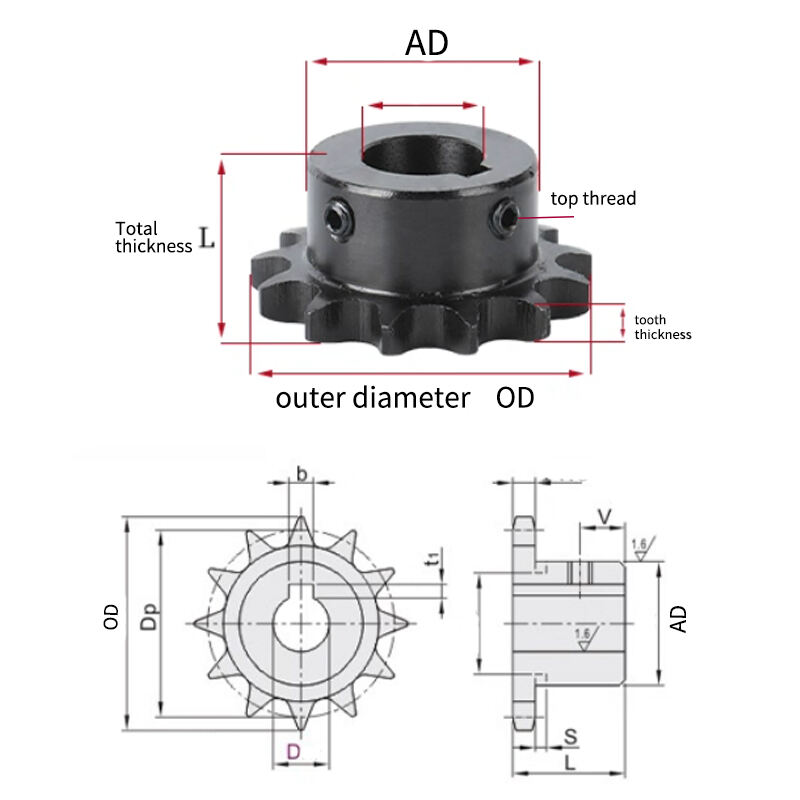

| 16A Sprocket Size Chart | ||||||||||
| type | teeth | AD | OD(outer diameter) | Total thickness | bore diameter | top thread | weight | tooth thickness | pitch |
roller chain diameter |
| 16A | mm | mm | mm | kg | mm | mm | mm | |||
| 16A | 10 | 66 | 94 | 38 | 14 | M8 | 1.035 | 15 | 25.4 | 15.88 |
| 16A | 11 | 72 | 102 | 40 | 16 | M8/M10 | 1.315 | 15 | 25.4 | 15.88 |
| 16A | 12 | 69 | 110 | 40 | 16 | M8/M10/M12 | 1.415 | 15 | 25.4 | 15.88 |
| 16A | 13 | 78 | 118 | 40 | 16 | M8/M10/M12 | 1.745 | 15 | 25.4 | 15.88 |
| 16A | 14 | 84 | 126 | 40 | 16 | M8/M10/M12 | 2.045 | 15 | 25.4 | 15.88 |
| 16A | 15 | 92 | 134 | 40 | 18 | M8/M10/M12 | 2.455 | 15 | 25.4 | 15.88 |
| 16A | 16 | 95 | 142 | 45 | 18 | M8/M10/M12 | 2.970 | 15 | 25.4 | 15.88 |

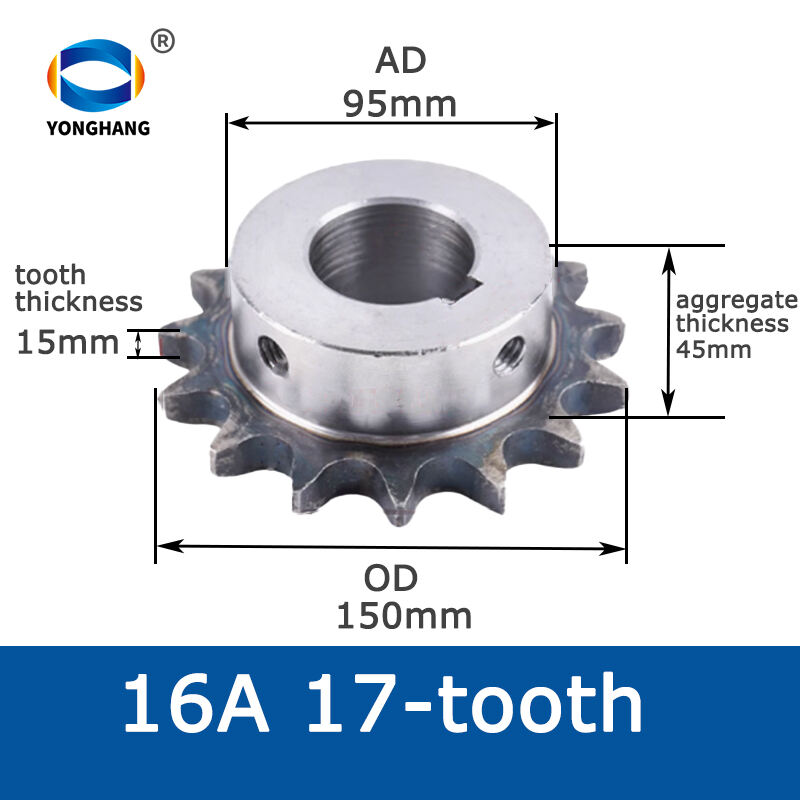

| 16A | 17 | 95 | 150 | 45 | 20 | M8/M10/M12 | 3.110 | 15 | 25.4 | 15.88 |

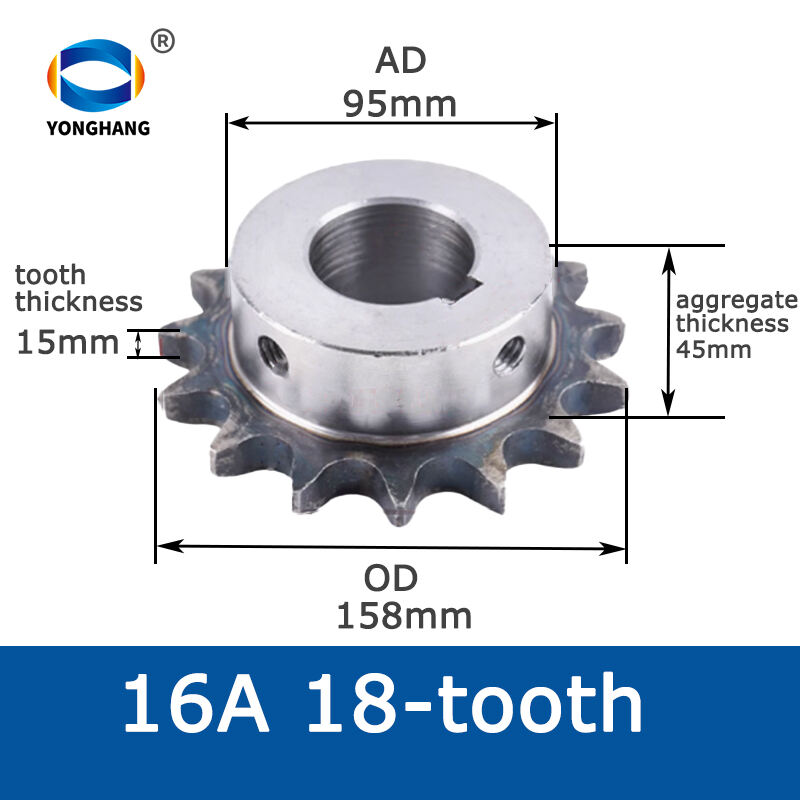

| 16A | 18 | 95 | 158 | 45 | 20 | M8/M10/M12 | 3.320 | 15 | 25.4 | 15.88 |
| 16A | 19 | 100 | 166 | 45 | 20 | M8/M10/M12 | 3.725 | 15 | 25.4 | 15.88 |
| 16A | 20 | 100 | 174 | 45 | 20 | M8/M10/M12 | 3.890 | 15 | 25.4 | 15.88 |
| 16A | 21 | 100 | 182 | 50 | 20 | M8/M10/M12 | 4.395 | 15 | 25.4 | 15.88 |
| 16A | 22 | 100 | 190 | 50 | 20 | M8/M10/M12 | 4.610 | 15 | 25.4 | 15.88 |
| 16A | 23 | 100 | 198 | 50 | 20 | M8/M10/M12 | 4.965 | 15 | 25.4 | 15.88 |
| 16A | 24 | 105 | 206 | 50 | 20 | M8/M10/M12 | 5.300 | 15 | 25.4 | 15.88 |
| 16A | 25 | 105 | 214 | 50 | 20 | M8/M10/M12 | 5.715 | 15 | 25.4 | 15.88 |
| 16A | 26 | 105 | 222 | 50 | 20 | M8/M10/M12 | 53945 | 15 | 25.4 | 15.88 |
| 16A | 27 | 110 | 230 | 50 | 20 | M8/M10/M12 | 6.520 | 15 | 25.4 | 15.88 |
| 16A | 28 | 110 | 240 | 50 | 20 | M8/M10/M12 | 6.820 | 15 | 25.4 | 15.88 |
| 16A | 29 | 110 | 248 | 50 | 20 | M8/M10/M12 | 7.3 | 15 | 25.4 | 5.88 |
| 16A | 30 | 110 | 256 | 50 | 20 | M8/M10/M12 | 7.760 | 15 | 25.4 | 15.88 |
| 16A | 31 | 110 | 264 | 50 | 20 | |||||
| 16A | 32 | 110 | 272 | 50 | 20 | |||||
| 16A | 33 | 110 | 280 | 50 | 20 | |||||
| 16A | 34 | 110 | 288 | 50 | 20 | |||||
| 16A | 35 | 110 | 296 | 50 | 20 | |||||
