10A/50B Sprocket
10A/50B Sprocket compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Yonghang summarizes the defects of past products, and continuously improves them. The specifications of 10A/50B Sprocket can be customized according to your needs.
- Introduction
Introduction
| 10A/50B Sprocket Size Chart | ||||||||||
| type | teeth | AD | OD(outer diameter) | Total thickness | bore diameter | top thread | weight | tooth thickness | pitch | roller chain diameter |
| mm | mm | mm | kg | mm | mm | mm | ||||
| 10A/50B | 10 | 40 | 58 | 28 | Free hole drilling service | M6 | 0.265 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 11 | 46 | 63 | 28 | Free hole drilling service | M6/M8 | 0.370 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 12 | 51 | 68 | 30 | Free hole drilling service | M6/M8 | 0.470 | 8.7 | 15.875 | 10.16 |

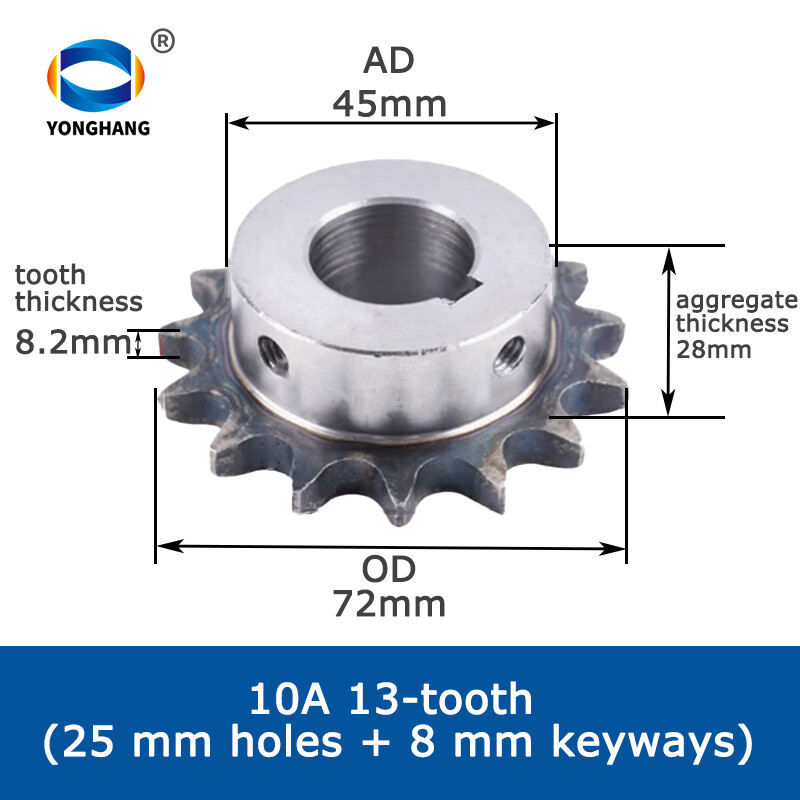

| 10A/50B | 13 | 55 | 73 | 30 | Free hole drilling service | M6/M8 | 0.540 | 8.7 | 15.875 | 10.16 |

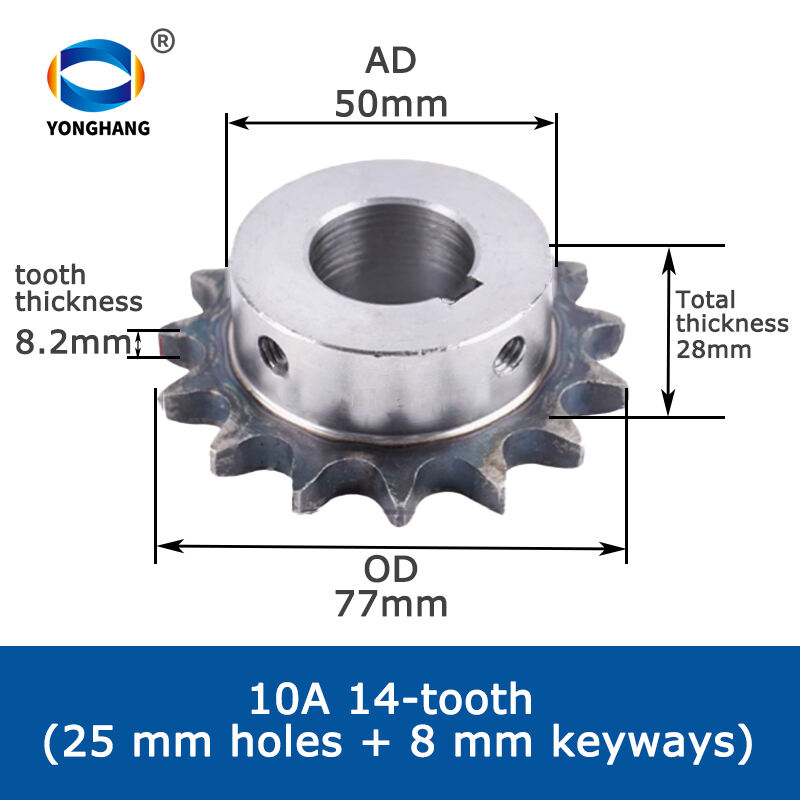

| 10A/50B | 14 | 52 | 78 | 30 | Free hole drilling service | M6/M8 | 0.560 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 15 | 57 | 83 | 30 | Free hole drilling service | M6/M8 | 0.665 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 16 | 60 | 88 | 30 | Free hole drilling service | M6/M8 | 0.755 | 8.7 | 15.875 | 10.16 |

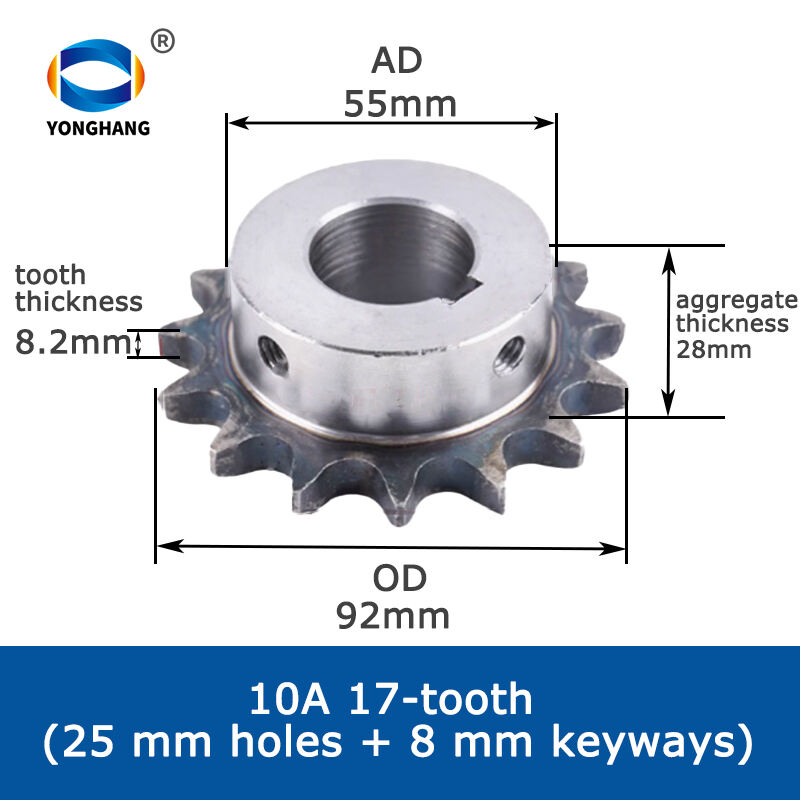

| 10A/50B | 17 | 60 | 93 | 30 | Free hole drilling service | M6/M8 | 0.800 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 18 | 70 | 98 | 30 | Free hole drilling service | M6/M8 | 1.010 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 19 | 70 | 103 | 30 | Free hole drilling service | M6/M8 | 1.050 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 20 | 75 | 108 | 30 | Free hole drilling service | M6/M8 | 1.195 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 21 | 75 | 113 | 30 | Free hole drilling service | M6/M8 | 1.245 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 22 | 80 | 118 | 30 | Free hole drilling service | M6/M8 | 1.395 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 23 | 80 | 123 | 30 | Free hole drilling service | M6/M8 | 1.450 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 24 | 80 | 128 | 30 | Free hole drilling service | M6/M8 | 1.505 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 25 | 80 | 133 | 30 | Free hole drilling service | M6/M8 | 1.600 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 26 | 85 | 138 | 35 | Free hole drilling service | M6/M8 | 1.960 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 27 | 85 | 143 | 35 | Free hole drilling service | M6/M8 | 2.010 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 28 | 85 | 148 | 35 | Free hole drilling service | M6/M8 | 2.085 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 29 | 90 | 153 | 35 | Free hole drilling service | M6/M8 | 2.320 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 30 | 90 | 158 | 35 | Free hole drilling service | M6/M8 | 2.370 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 31 | 95 | 163 | 35 | Free hole drilling service | M6/M8 | 2.635 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 32 | 95 | 168 | 35 | Free hole drilling service | M6/M8 | 2.680 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 33 | 95 | 173 | 35 | Free hole drilling service | M6/M8 | 2.760 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 34 | 95 | 178 | 35 | Free hole drilling service | M6/M8 | 2.850 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 35 | 95 | 183 | 38 | Free hole drilling service | M6/M8 | 3.135 | 8.7 | 15.875 | 10.16 |
| 10A/50B | 36 | 95 | 188 | 38 | Free hole drilling service | M6/M8 | 3.190 | 8.7 | 15.875 | 10.16 |
