08B sprocket
08B Sprocket compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Yonghang summarizes the defects of past products, and continuously improves them. The specifications of 08B Sprocket can be customized according to your needs.
- Introduction
Introduction
| 08B sprocket Size Chart | ||||||||||
| type | teeth | AD | OD(outer diameter) | Total thickness | bore diameter | top thread | weight | tooth thickness | pitch | roller chain diameter |
| mm | mm | mm | kg | mm | mm | mm | ||||
| 08B | 10 | 32 | 47 | 25 | Free hole drilling service | M5/M6 | 0.145 | 7.2 | 12.70 | 8.51 |

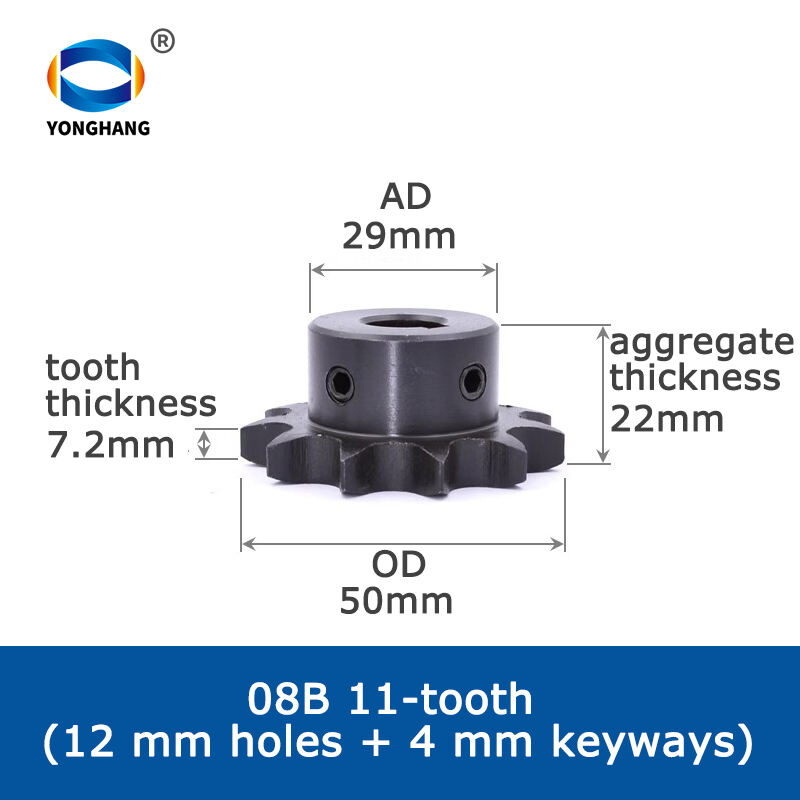

| 08B | 11 | 36 | 51 | 25 | Free hole drilling service | M5/M6 | 0.185 | 7.2 | 12.70 | 8.51 |

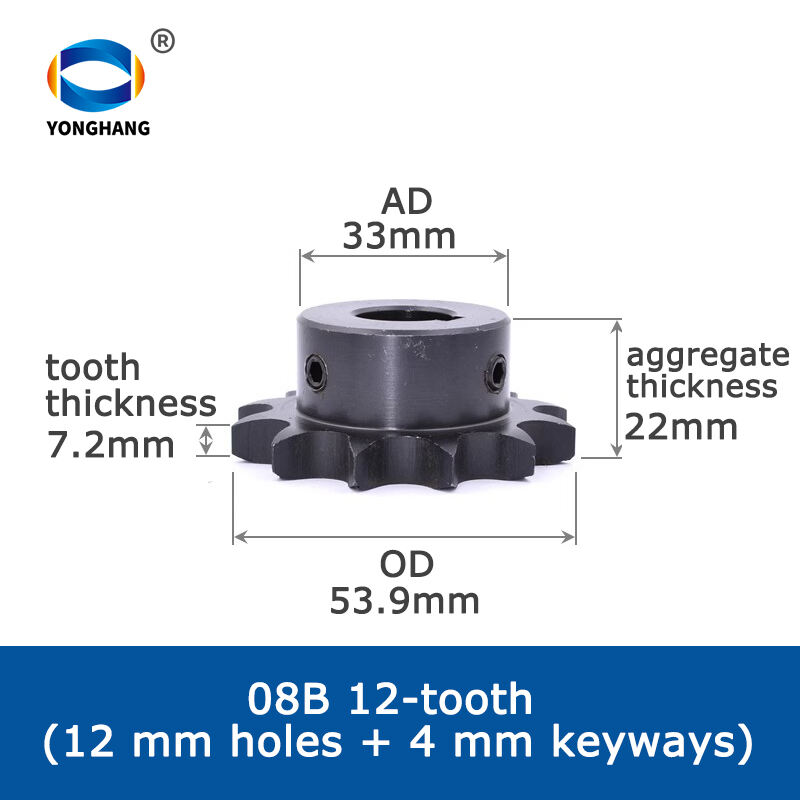

| 08B | 12 | 40 | 55 | 26 | Free hole drilling service | M5/M6 | 0.245 | 7.2 | 12.70 | 8.51 |
| 08B | 13 | 44 | 59 | 26 | Free hole drilling service | M6/M8 | 0.295 | 7.2 | 12.70 | 8.51 |

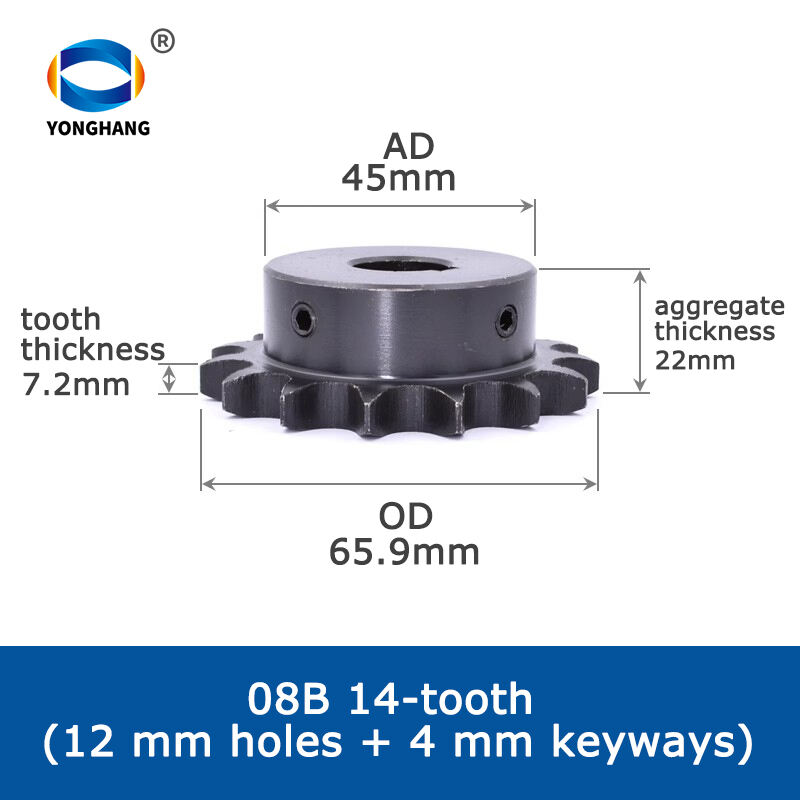

| 08B | 14 | 48 | 63 | 26 | Free hole drilling service | M6/M8 | 0.360 | 7.2 | 12.70 | 8.51 |
| 08B | 15 | 51 | 67 | 26 | Free hole drilling service | M6/M8 | 0.425 | 7.2 | 12.70 | 8.51 |

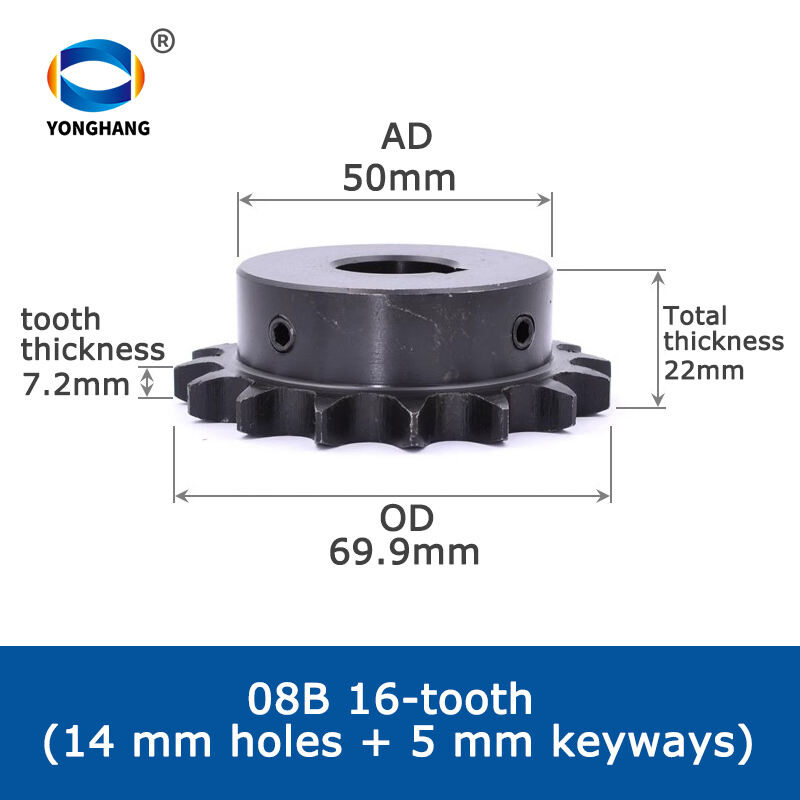

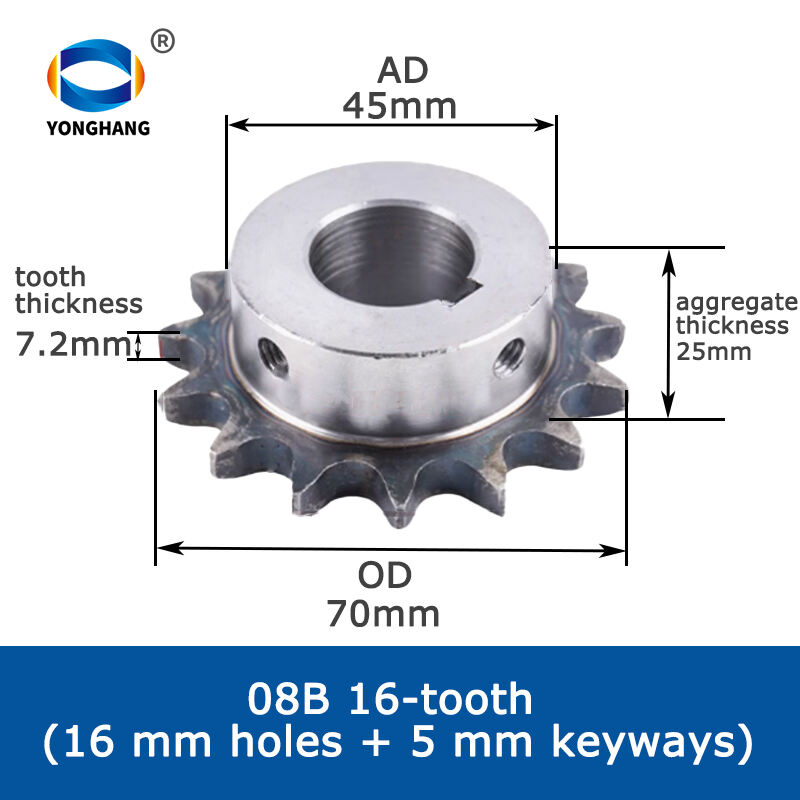

| 08B | 16 | 50 | 71 | 28 | Free hole drilling service | M6/M8 | 0.455 | 7.2 | 12.70 | 8.51 |
| 08B | 17 | 52 | 75 | 28 | Free hole drilling service | M6/M8 | 0.500 | 7.2 | 12.70 | 8.51 |
| 08B | 18 | 56 | 79 | 28 | Free hole drilling service | M6/M8 | 0.575 | 7.2 | 12.70 | 8.51 |

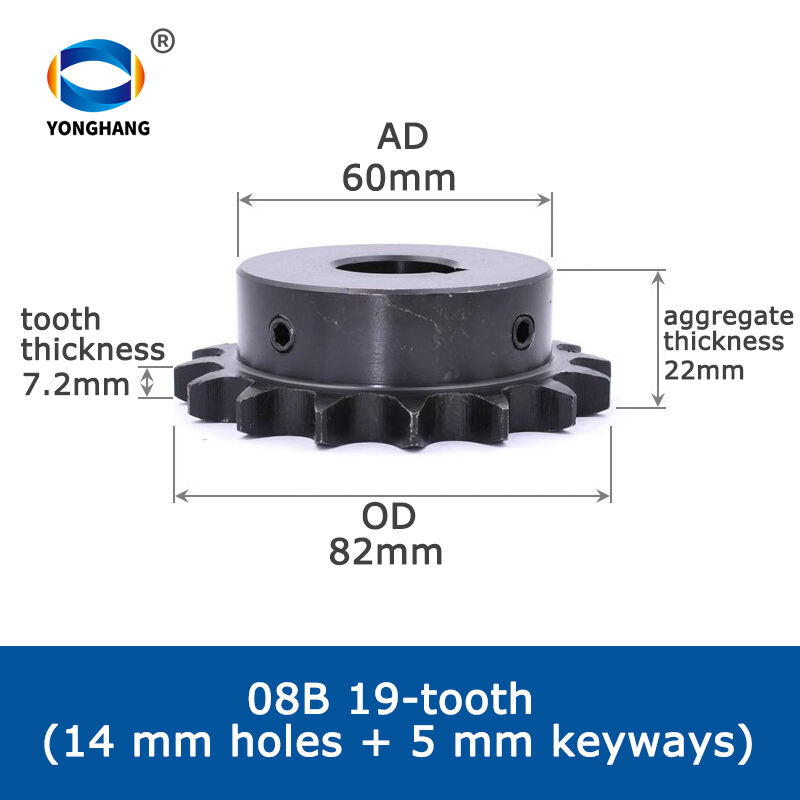

| 08B | 19 | 60 | 83 | 28 | Free hole drilling service | M6/M8 | 0.670 | 7.2 | 12.70 | 8.51 |

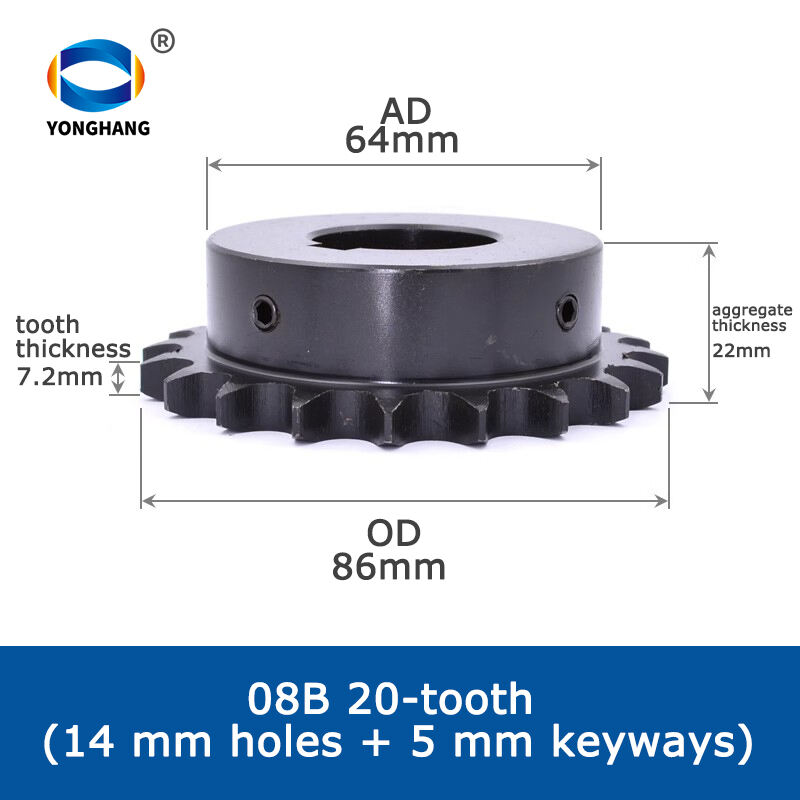

| 08B | 20 | 64 | 87 | 28 | Free hole drilling service | M6/M8 | 0.755 | 7.2 | 12.70 | 8.51 |
| 08B | 21 | 68 | 91 | 28 | Free hole drilling service | M6/M8 | 0.845 | 7.2 | 12.70 | 8.51 |
| 08B | 22 | 70 | 95 | 28 | Free hole drilling service | M6/M8 | 0.905 | 7.2 | 12.70 | 8.51 |
| 08B | 23 | 70 | 99 | 28 | Free hole drilling service | M6/M8 | 0.945 | 7.2 | 12.70 | 8.51 |
| 08B | 24 | 70 | 103 | 28 | Free hole drilling service | M6/M8 | 0.965 | 7.2 | 12.70 | 8.51 |
| 08B | 25 | 70 | 107 | 28 | Free hole drilling service | M6/M8 | 0.995 | 7.2 | 12.70 | 8.51 |
| 08B | 26 | 70 | 111 | 30 | Free hole drilling service | M6/M8 | 1.095 | 7.2 | 12.70 | 8.51 |
| 08B | 27 | 70 | 115 | 30 | Free hole drilling service | M6/M8 | 1.140 | 7.2 | 12.70 | 8.51 |
| 08B | 28 | 70 | 119 | 30 | Free hole drilling service | M6/M8 | 1.185 | 7.2 | 12.70 | 8.51 |
| 08B | 29 | 80 | 123 | 30 | Free hole drilling service | M6/M8 | 1.395 | 7.2 | 12.70 | 8.51 |
| 08B | 30 | 80 | 127 | 30 | Free hole drilling service | M6/M8 | 1.460 | 7.2 | 12.70 | 8.51 |
| 08B | 31 | 85 | 131 | 30 | Free hole drilling service | M6/M8 | 1.610 | 7.2 | 12.70 | 8.51 |
| 08B | 32 | 85 | 135 | 30 | Free hole drilling service | M6/M8 | 1.660 | 7.2 | 12.70 | 8.51 |
| 08B | 33 | 85 | 139 | 30 | Free hole drilling service | M6/M8 | 1.690 | 7.2 | 12.70 | 8.51 |
| 08B | 34 | 85 | 143 | 30 | Free hole drilling service | M6/M8 | 1.730 | 7.2 | 12.70 | 8.51 |
| 08B | 35 | 85 | 147 | 30 | Free hole drilling service | M6/M8 | 1.790 | 7.2 | 12.70 | 8.51 |
| 08B | 36 | 85 | 151 | 35 | Free hole drilling service | M6/M8 | 2.055 | 7.2 | 12.70 | 8.51 |
