PVC PU Conveyor Belt Short-Diameter Splicing Machine
YONGHANG short-diameter splicing machine (also known as the compact hot vulcanising jointing machine) is a conveyor belt connection device specifically designed for confined spaces and complex operating conditions. Featuring a modular structure, it minimises the equipment's axial dimensions to the utmost while maintaining the quality of the hot vulcanisation process. This addresses the industry-wide challenge of traditional vulcanisers being ‘impossible to deploy on-site or difficult to operate’, making it a specialised solution for conveyor belt maintenance in underground mining, tunnel construction, and densely populated industrial zones.
- Introduction
Introduction
Features:
- Precision-machined electric heating plates, coupled with a multi-point temperature control system, ensure uniform and stable temperatures throughout the vulcanisation zone.

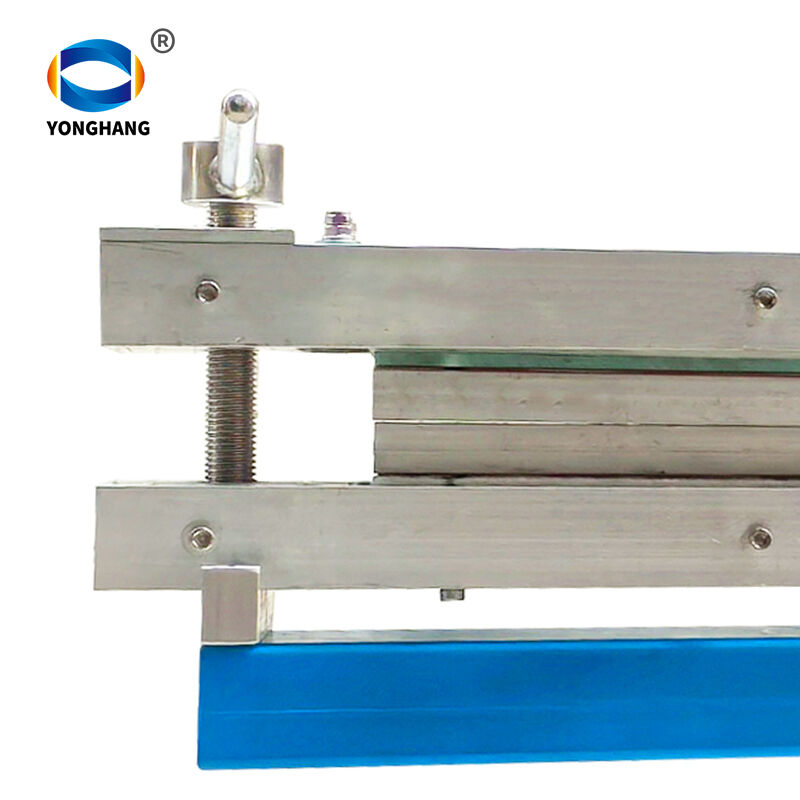

- Multiple independent pressurised cylinders or a unique mechanical structure guarantee consistent pressure distribution across the entire joint surface, ensuring no weak bonding and high joint strength.

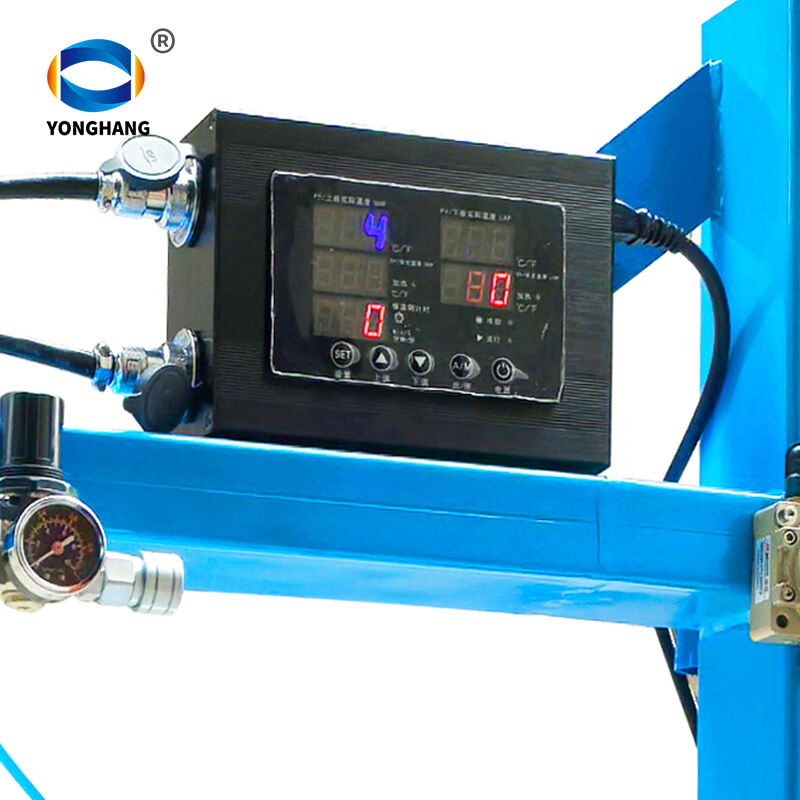

- The control system and pump station are highly integrated within a compact enclosure, offering straightforward operation and convenient mobility.
- Equipment length along the conveyor belt direction is reduced by 30%-50%, enabling operation in locations where conventional equipment cannot be positioned, such as behind rollers or at tunnel bends.
- Critical components utilise high-strength alloy materials, reducing weight while maintaining structural rigidity.
Product parameters:
| Model | BN-C700-220V |
| Effective length | 600mm |
| Effective width | 70mm |
| Minimum connection length | 270mm |
| Bare machine weight | 15KG |
| Machine length | 900mm |
| Machine width | 145mm |
| Machine height | 280mm |
| Bracket length | 1000mm |
| Bracket width | 80mm |
| Bracket height | 1400mm |
| Maximum pressure | 4KG |
| Maximum temperature | 210℃ |
| Working voltage | 220V |
| Power | 680W |
