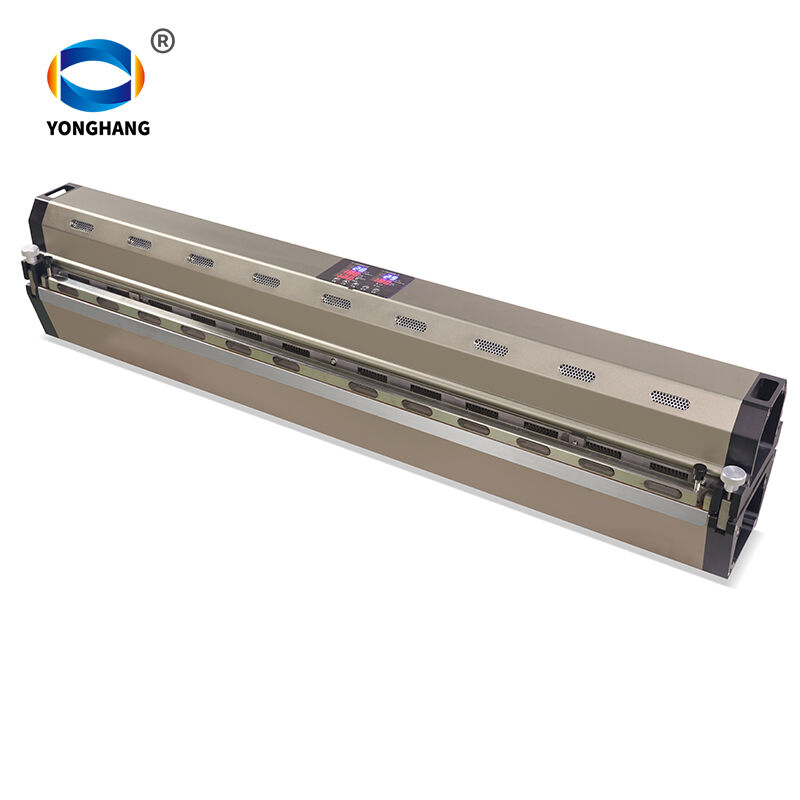

Air-Cooled Conveyor Belt Heating Press Machine
The YONGHANG Air-Cooled Conveyor Bet Heating Press Machine is a specialized device that connects conveyor belt joints through heating and pressure,supporting PVC, PU, and PE conveyor belts.
- Introduction
Introduction
Features:
- Air-Cooled Conveyor Belt Heating Press Machine Specifically engineered for conveyor belt jointing, this core process combines heating and pressurisation to achieve reliable, seamless connections at belt ends.
- The equipment offers high process adaptability, enabling on-site splicing of various mainstream polymeric conveyor belts including PVC, PU, and PE.
- Air-Cooled Conveyor Belt Heating Press Machine Equipped with a forced air cooling system, it efficiently cools the joint area post-hot pressing, accelerating the setting process and reducing construction time.
- Air-Cooled Conveyor Belt Heating Press Machine Featuring a compact, integrated structure combining heating, pressing and cooling functions, it facilitates mobility and on-site operation, meeting rapid repair demands across diverse working conditions.

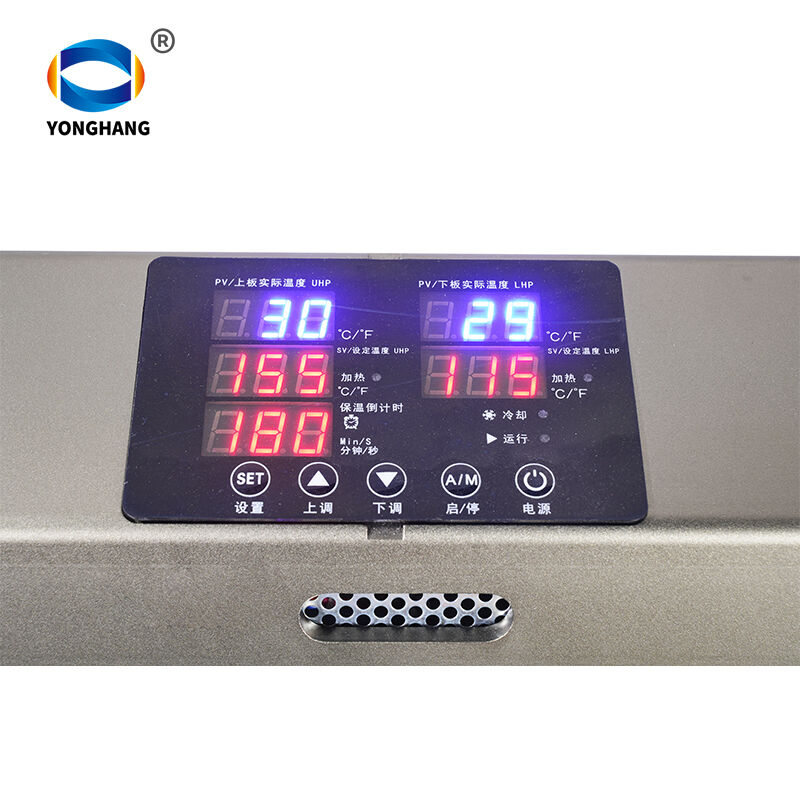

- Supports flexible adjustment of heating temperature, pressing pressure and cooling duration according to conveyor belt thickness and material variations, ensuring consistent and reliable joint quality.
Air-Cooled Conveyor Belt Heating Press Machine: Less Than 2 M
Product parameters:
| Model | BN-F300 | BN-F600 | BN-F800 | BN-F900 | BN-F1000 | BN-F1200 | BN-F1500 |
| Effective length | 300 mm | 600mm | 800mm | 900mm | 1000mm | 1200mm | 1500mm |
| Effective heating width | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Lower beam | 18kg | 28kg | 32kg | 36kg | 40kg | 47kg | 59kg |
| Upper beam | 14kg | 21kg | 28kg | 27kg | 34kg | 40kg | 45kg |
| Bare machine weight | 32kg | 49kg | 60kg | 63kg | 74kg | 87kg | 104kg |
| Machine length | 480 mm | 780 mm | 980 mm | 1080 mm | 1180mm | 1380 mm | 1680 mm |
| Machine height | 310mm | 310mm | 310mm | 310mm | 310mm | 310mm | 310mm |
| Machine width | 230mm | 230mm | 230mm | 230mm | 230mm | 230mm | 230mm |
| Maximum pressure | 4 Bar | 4 Bar | 4 Bar | 4 Bar | 4 Bar | 4 Bar | 2-3 Bar |
| Maximum temperature | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ |
| Aircraft case dimensions(mm) | 800*350*400 | 1100*350*400 | 1300*350*400 | 1400*350*400 | 1500*350*400 | 1700*350*400 | 2000*350*400 |
| Aircraft container weight | 12kg | 14kg | 15kg | 16kg | 18kg | 22kg | 26kg |
| Wooden box size(mm) | 870*470*630 | 1170*470*630 | 1170*470*630 | 1470*470*630 | 1570*470*630 | 1770*470*630 | 2070*470*630 |
| Packing weight (including accessories) |
73kg | 98kg | 96kg | 113kg | 123kg | 157kg | 183kg |
| Power | 1.8kW | 3.6kW | 4.8kW | 5.4kW | 6.0kW | 7.2KW | 9.0kW |
