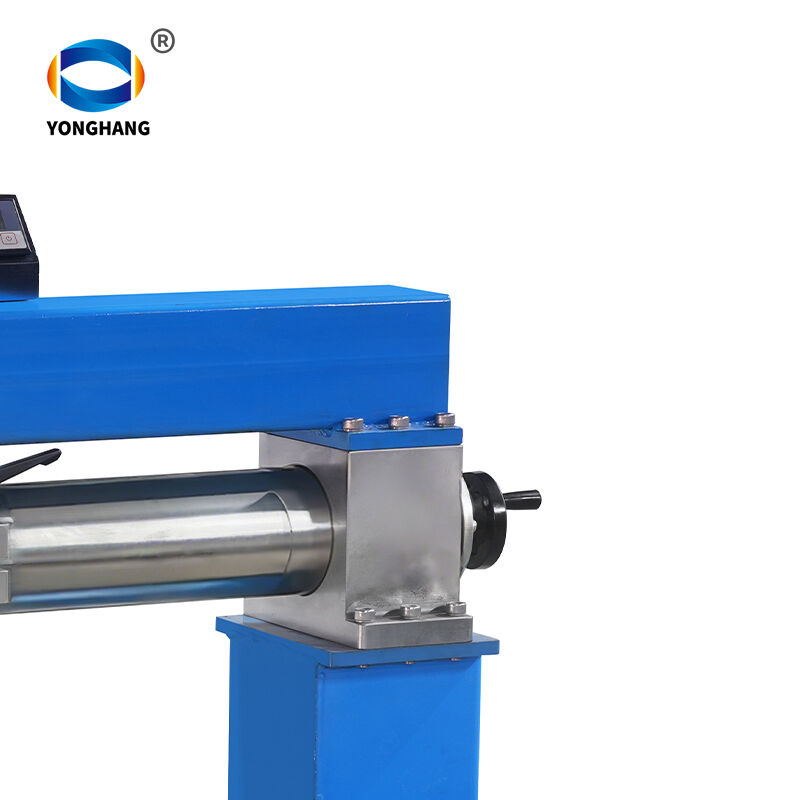

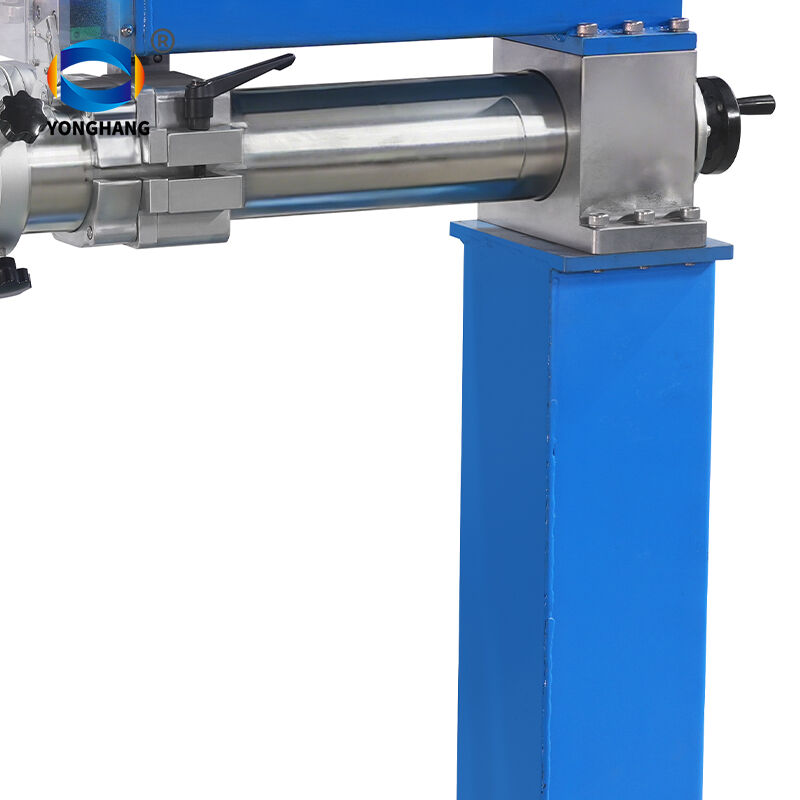

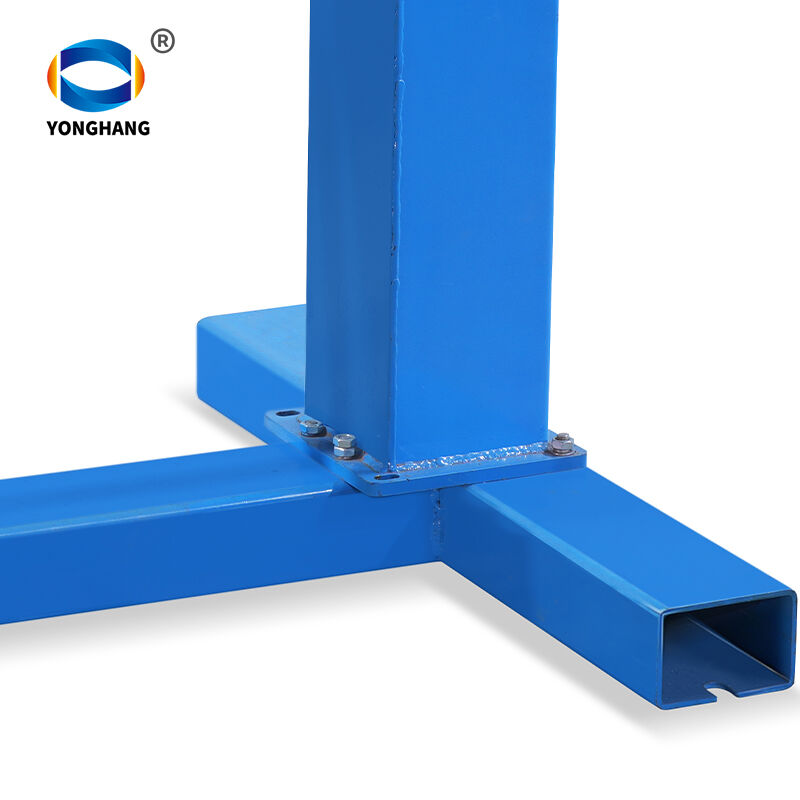

Manual Mechanical Longitudinal Slitting Cutting Machine
YONGHANG Manual Mechanical Longitudinal Slitting Cutting Machine for conveyor belts is a specialised piece of equipment employing a purely mechanical transmission structure. It is specifically designed for the precise longitudinal cutting of various industrial conveyor belts (including rubber, PVC, PU and other materials). This equipment achieves stable cutting through manual operation, requiring no external power or air supply. It is particularly suited for non-powered environments, field operations, and locations with stringent safety requirements. Its core value lies in replacing the instability of traditional manual cutting with mechanical reliability, enabling standardised operations such as conveyor belt width adjustment and edge trimming.
- Introduction
Introduction
Product Features:
Fully Mechanical Transmission System
- Features high-strength gear sets and helical feed mechanisms, achieving transmission efficiency ≥92%
- Manual crank equipped with a force-saving lever mechanism, requiring operating torque ≤15N·m
- Precise control over cutting process, with minimum feed accuracy of 0.5mm per revolution
Adaptive Cutting System
- Floating dual-cutting-head design automatically accommodates variations in conveyor belt thickness (5-25mm)
- Adjustable carbide blades with three selectable cutting angles: 30°, 45°, 60°
- Integrated pressure balancing mechanism ensures straight cutting without deviation or blade jamming
Modular Guiding Mechanism
- Adjustable guide rail width range: 200–2000mm
- Laser-etched positioning scale with positioning error ≤±1mm
- Quick-clamping device secures the belt within 3 seconds
Product parameters:
| Size | 1000*1000*800mm |
| Weight | 119KG |
| MAX knife width | 260mm |
| MAX belt width | 700mm |
| MIN cut width | 5mm |
| Features | 1.Width digital display |
| 2.It is convenient to replace the blade | |
| 3.Easy and smooth to operate | |
| 4.Precise cutting,high quality | |
| 5.It features high material utilization rate and adjustable cutting speed |
