PTFE Tabber Stringer Belts | Solar Laminated Belts
Optimize your photovoltaic module assembly with our high-end 2-layer laminated PTFE tabber stringer machine belts. Engineered specifically for continuous solar cell soldering and tabbing processes, these heavy-duty Teflon conveyor belts feature precisely spaced, evenly distributed perforations to ensure consistent vacuum retention. Utilizing an advanced interlocking toothed joint connection, the splice matrix maintains an absolutely uniform thickness across the entire belt profile. This seamless integration eliminates uneven pressure points, dramatically multiplying mechanical tensile strength and extending operational service life. Capable of enduring continuous thermal exposure up to 260°C (500°F), our non-stick, ultra-smooth laminated belting minimizes flux buildup and wear, keeping your automated PV production lines running at peak velocity.
- Introduction
Introduction
Technical Bullet Points：
Dual-Layer Laminated Matrix: Double-layered PTFE fabric fusion provides exceptional dimensional stability and tear resistance under high-speed mechanical tension.
Uniform Perforation Pattern: Precision-punched, evenly distributed holes ensure consistent airflow and vacuum holding power for delicate solar cells.

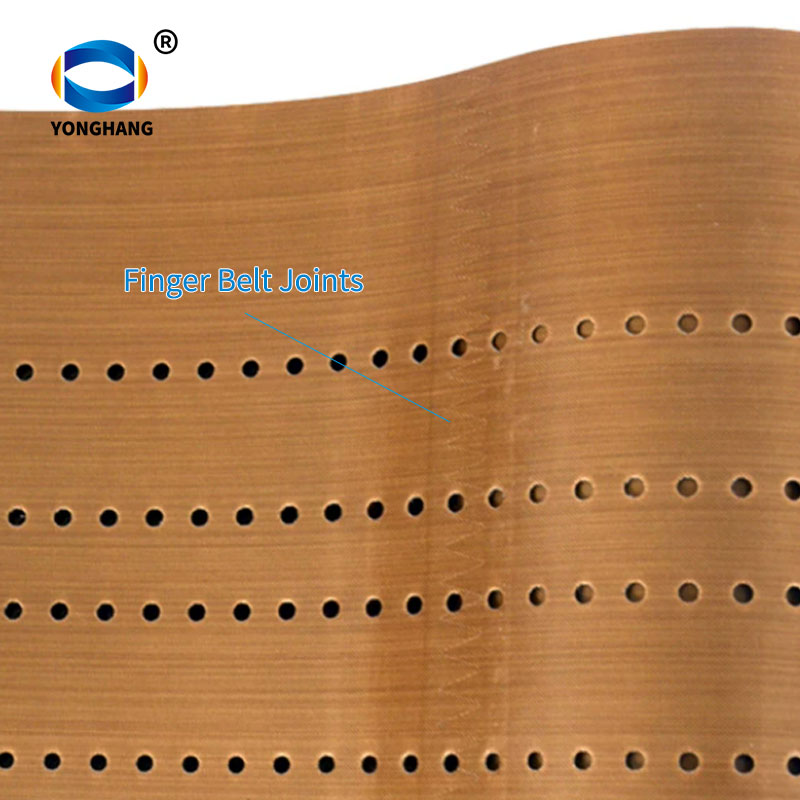

Flush Interlocking Toothed Joint: The specialized toothed splice maintains a flat, zero-profile thickness across the entire belt, eliminating joint fatigue and extending service life.
Extreme Thermal Resilience: Safely operates in continuous heat zones up to 260°C (500°F), ideal for rigorous solar cell soldering and tabbing processes.
Non-Stick & Anti-Abrasive: The ultra-smooth Teflon coating prevents flux buildup and resists friction wear, reducing maintenance downtime.
Product Parameters:
| Material | Top layer: Brown PTFE glass cloth in thickness of 0.13mm |
| Inner layer: Anti-static black PTFE glass cloth in thickness of 0.13mm | |
| Overall Thickness | 0.26mm |
| Common size | 200mm*4400mm |
| 200mm*3509mm | |
| 200mm*6008mm | |
| Other sizes can be customized |
FAQ:
Q1: What are the benefits of the toothed joint on a 2-layer PTFE tabber stringer belt?
A: The interlocking toothed connection creates a completely flush joint that maintains the exact same thickness as the rest of the belt profile. By eliminating uneven thickness at the splice point, this specialized design prevents localized wear, enhances mechanical tensile strength, and significantly extends the operational lifespan of the conveyor belt.
Q2: What temperature can the solar tabber stringer belt withstand?
A: Our laminated PTFE tabber stringer belts are engineered to endure extreme thermal environments, reliably withstanding continuous operating temperatures up to 260°C (500°F). Even under intense heat, the belt preserves its non-stick, ultra-smooth, and abrasion-resistant surface, which prevents flux buildup and ensures seamless solar cell soldering.
