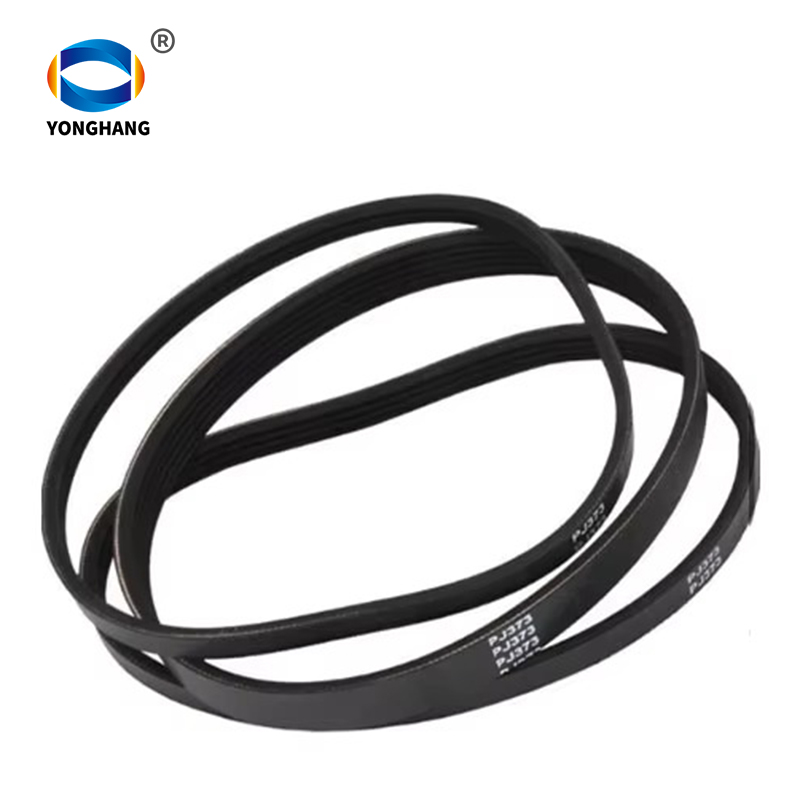

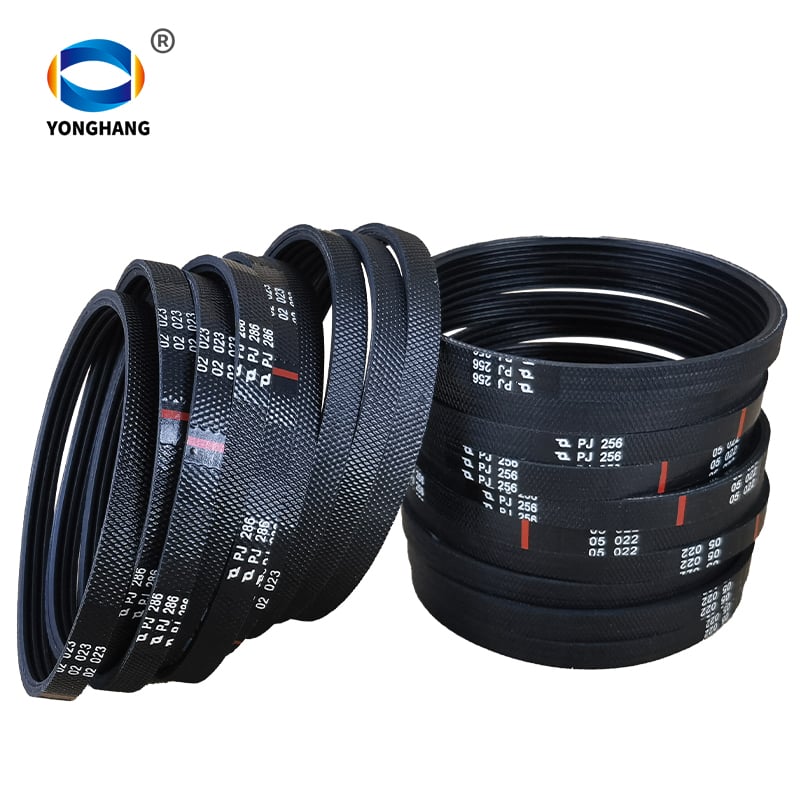

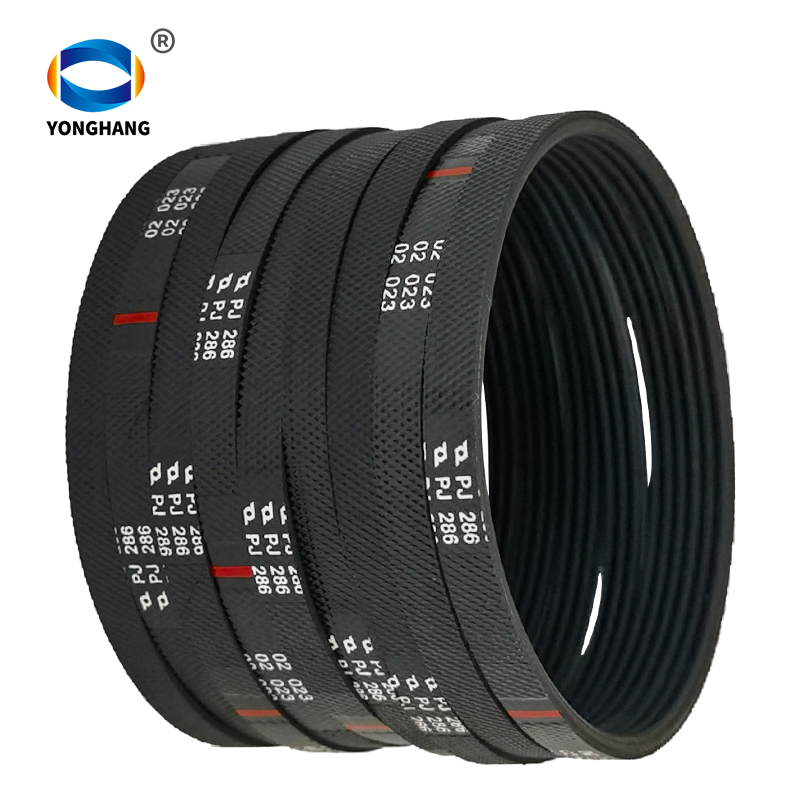

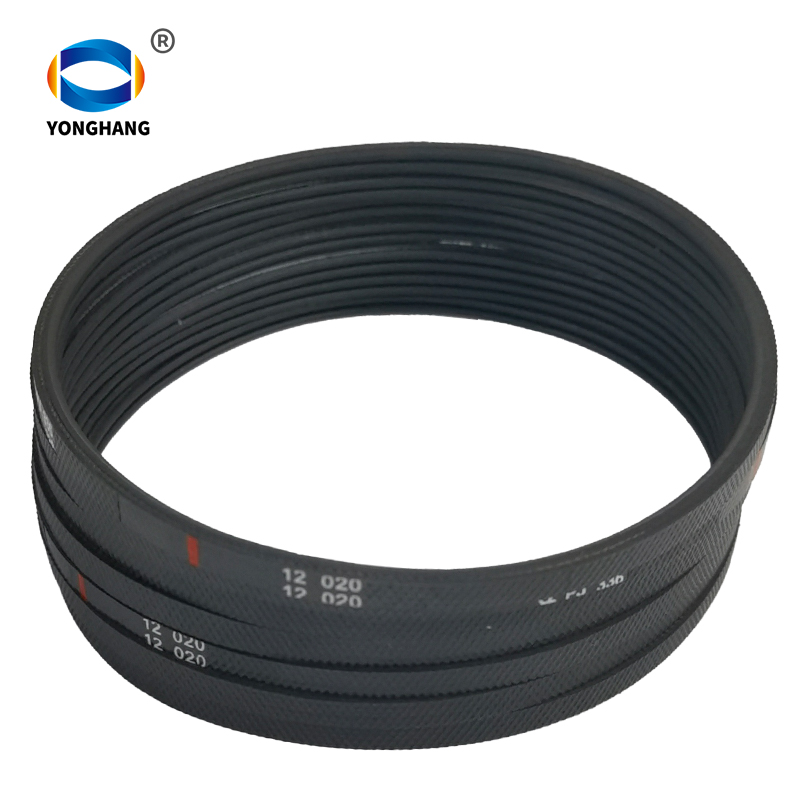

Elastic ribbed belts

YONGHANG Elastic ribbed belt profiles EPH and EPJ consist of a superstructure, an elastic tension cord and a base compound. The superstructure is made from a fibre-reinforced rubber mixture. The fibres are laid perpendicular to the direction of belt travel and stabilise the belt during dynamic operation. The tension cord is a high modulus polyamide material embedded in a rubber compound and covers the entire width of the ribbed belt. The rib compound is characterised by high wear resistance and damping properties.

  • Introduction
Introduction

Elastic ribbed belts Advantages:

1.Large tranmission power.Under the conditions of same space,its transmission power is 30% higher than that of ordinary v belt.
2.Fine flexibility,suits driving small diameter pulley and high speed transmission.Belt speed reaches as high as 40m/s.
3.With short fiber reinforcement,it can bear high horizontal pressure,increase wedge pressure of the belt and reduce deformation after it encounters the force .It also features as compact structure,little vibration and the more smooth operation.
4.It resists cold,heat,oil,corrosion,flex,wear and ageing with long service life and little elongation in use.

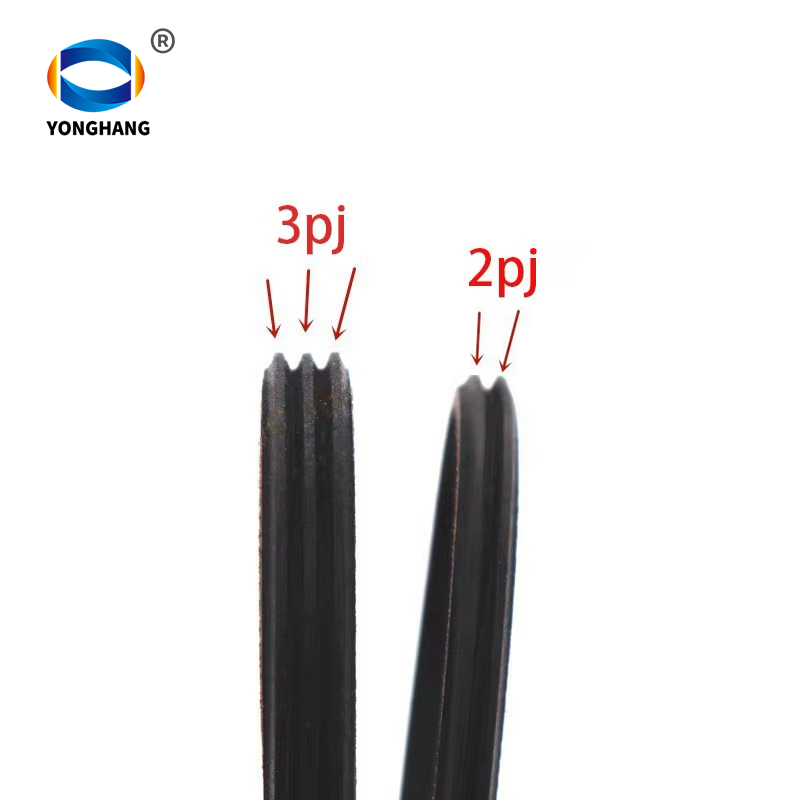

Elastic ribbed belt sections EPH and EPJ consist of:

  1. a superstructure
  2. an elastic tension cord
  3. a base


The superstructure is made from a fibre-reinforced rubber mixture. The fibres are laid perpendicular to the direction of belt travel and stabilise the belt during dynamic operation.

The tension cord is a high modulus polyamide material embedded in a rubber compound and covers the entire width of the ribbed belt.

The rib compound is characterised by high wear resistance and damping properties.

Elastic ribbed belt profiles EPH and EPJ consist of a superstructure, an elastic tension cord and a base compound. The superstructure is made from a fibre-reinforced rubber mixture. The fibres are laid perpendicular to the direction of belt travel and stabilise the belt during dynamic operation. The tension cord is a high modulus polyamide material embedded in a rubber compound and covers the entire width of the ribbed belt. The rib compound is characterised by high wear resistance and damping properties.

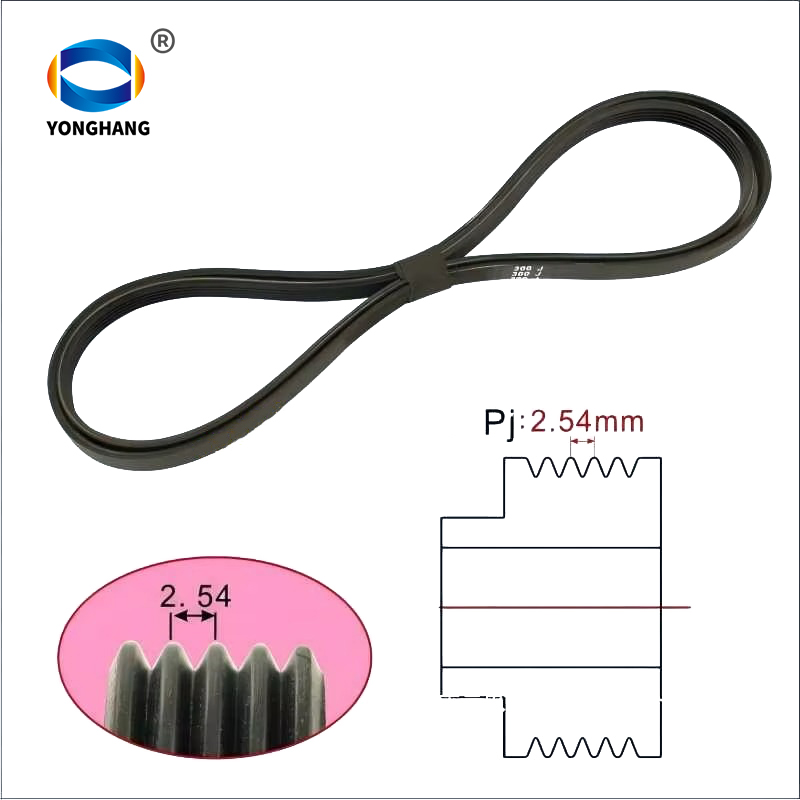

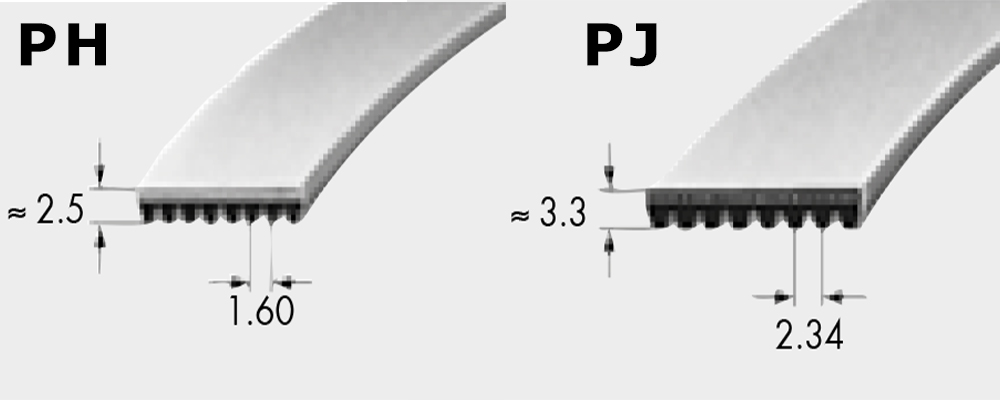

Profile sizes and Length range
EPH Length range depends on the profile.from 250 mm to 2500 mm
EPJ Length range depends on the profile.from 250 mm to 2500 mm

Elastic ribbed belts Characteristics:

 • Assembly is possible on fixed centres with no need for adjustment for belt tensioning

. • easy assembly on the production line

 • Only one belt length may be usable for different drive configurations.

• good shock load resistance due to high elasticity of belt

• maintenance-free

• easy assembly in service areas
