Carbon Belt Drive Bike
YONGHANG Carbon drive belt With strong carbon wire core and maintenance-free drive belts for motorcycles and scooters, helps customers avoid high repair costs. Belts retain their long service life, even in extreme applications and temperatures.
- Introduction
Introduction
YONGHANG Carbon drive belt With strong carbon wire core and maintenance-free drive belts for motorcycles and scooters, helps customers avoid high repair costs. Belts retain their long service life, even in extreme applications and temperatures.
Clean, smooth, strong, YONGHANG Carbon Drive Belts are designed to meet the demands of all cyclists. If you're into long-distance or rugged off-road cycling, our Carbon drive belt is the best choice. Composed of a weather-resistant HNBR exterior, the advanced high-performance belt features strong, stretch-free carbon fiber tensile cords. You can even choose from blue, red, or black to add a little personality. If you're a casual urban cyclist, our Carbon Drive belt is the right choice with its nine carbon cords and an engineered polymer body.
Product Details:
The YONGHANG Carbon Drive Belt is clean, smooth, strong, and designed to meet the demands of all cyclists. If you're into long-distance or rugged off-road cycling, the YONGHANG Carbon Drive belt is the best choice.

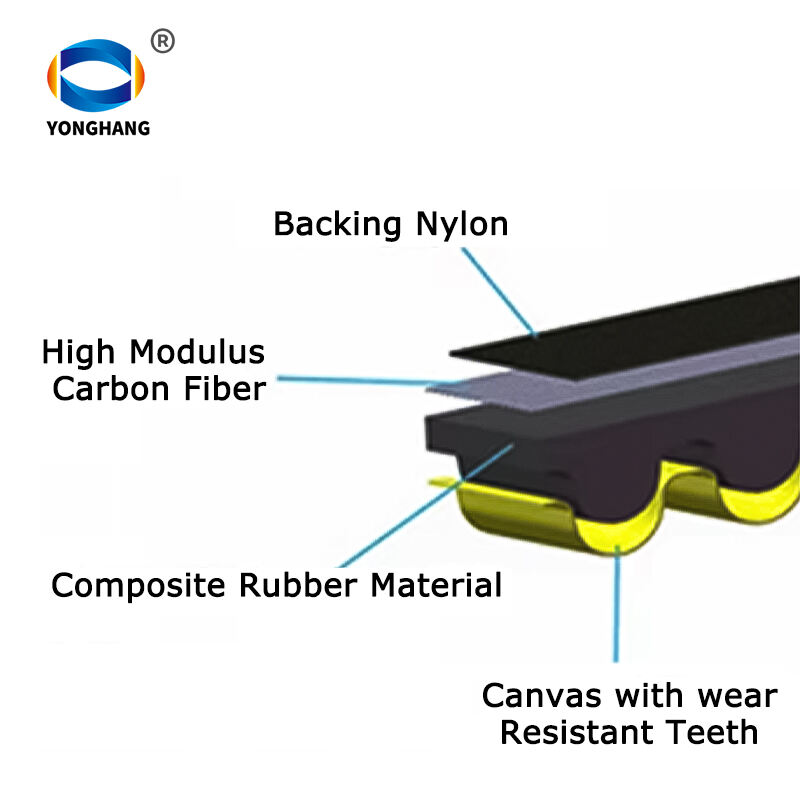

Composed of a weather-resistant polyurethane exterior, the advanced high-performance belt features strong, stretch-free carbon fiber tensile cords. The Carbon Drive Belt are available in multiple tooth counts, lengths, and jacket colours (cosmetic only).
Ideally suited as a direct replacement belt for many electric bicycle brands such as Riese & Müller, Cube, Gazelle, BMC, Bulls, Canyon, Tern, Pedego, Stromer, and many more.
Carbon drive belt Size:
Model | Number of Teeth | Length(mm) | Width(mm) | Model | Number of Teeth | Length(mm) | Width(mm) |
H11M | 75 | 825 | 12 | H14M | 85 | 1190 | 12 |
H11M | 78 | 858 | 12 | H14M | 95 | 1358 | 12 |
H11M | 91 | 1001 | 12 | H14M | 97 | 1428 | 12 |
H11M | 95 | 1045 | 12 | H14M | 100 | 1610 | 12 |
H11M | 100 | 1100 | 12 | H14M | 102 | 1736 | 12 |
H11M | 102 | 1122 | 12 | H14M | 108 | 1764 | 12 |
H11M | 105 | 1155 | 12 | H14M | 115 | 1988 | 12 |
H11M | 106 | 1166 | 12 | H14M | 115 | 2100 | 12 |
H11M | 108 | 1188 | 12 | H14M | 124 | 2310 | 12 |
H11M | 109 | 1199 | 12 | H14M | 125 | 2520 | 12 |
H11M | 110 | 1210 | 12 | G14M | 126 | 1848 | 12 |
H11M | 111 | 1221 | 12 | G14M | 127 | 1890 | 12 |
H11M | 113 | 1243 | 12 | G14M | 132 | 1946 | 12 |
H11M | 114 | 1254 | 12 | H14M | 133 | 1330 | 12 |
H11M | 115 | 1265 | 12 | H14M | 135 | 1400 | 12 |
H11M | 116 | 1276 | 12 | H14M | 137 | 1512 | 12 |
H11M | 117 | 1287 | 12 | H14M | 139 | 1610 | 12 |
H11M | 118 | 1298 | 12 | H14M | 140 | 1750 | 12 |
H11M | 119 | 1309 | 12 | H14M | 142 | 1778 | 12 |
H11M | 120 | 1320 | 12 | H14M | 143 | 2002 | 12 |
H11M | 121 | 1331 | 12 | H14M | 150 | 2226 | 12 |
H11M | 122 | 1342 | 12 | H14M | 159 | 2380 | 12 |
H11M | 124 | 1364 | 12 | H14M | 165 | 2744 | 12 |
H11M | 125 | 1375 | 12 | G14M | 170 | 1862 | 12 |
H11M | 126 | 1386 | 12 | G14M | 180 | 1918 | 12 |
H11M | 128 | 1408 | 12 | G14M | 196 | 1960 | 12 |
H11M | 130 | 1430 | 12 | ||||
H11M | 132 | 1452 | 12 | ||||
H11M | 134 | 1474 | 12 | ||||
H11M | 135 | 1485 | 12 | ||||
H11M | 136 | 1496 | 12 | ||||
H11M | 137 | 1507 | 12 | ||||
H11M | 139 | 1529 | 12 | ||||
H11M | 143 | 1573 | 12 | ||||
H11M | 144 | 1584 | 12 | ||||
H11M | 146 | 1606 | 12 | ||||
H11M | 147 | 1617 | 12 | ||||
H11M | 151 | 1661 | 12 | ||||
H11M | 153 | 1683 | 12 | ||||
H11M | 156 | 1716 | 12 | ||||
H11M | 157 | 1727 | 12 | ||||
H11M | 158 | 1738 | 12 | ||||
H11M | 160 | 1760 | 12 | ||||
H11M | 162 | 1782 | 12 | ||||
H11M | 166 | 1826 | 12 | ||||
H11M | 168 | 1848 | 12 | ||||
H11M | 171 | 1881 | 12 | ||||
H11M | 172 | 1892 | 12 | ||||
H11M | 174 | 1914 | 12 | ||||
H11M | 177 | 1947 | 12 | ||||
H11M | 179 | 1969 | 12 | ||||
H11M | 181 | 1991 | 12 |
