Power Transmission Belt Automatic Slitting Cutting Machine

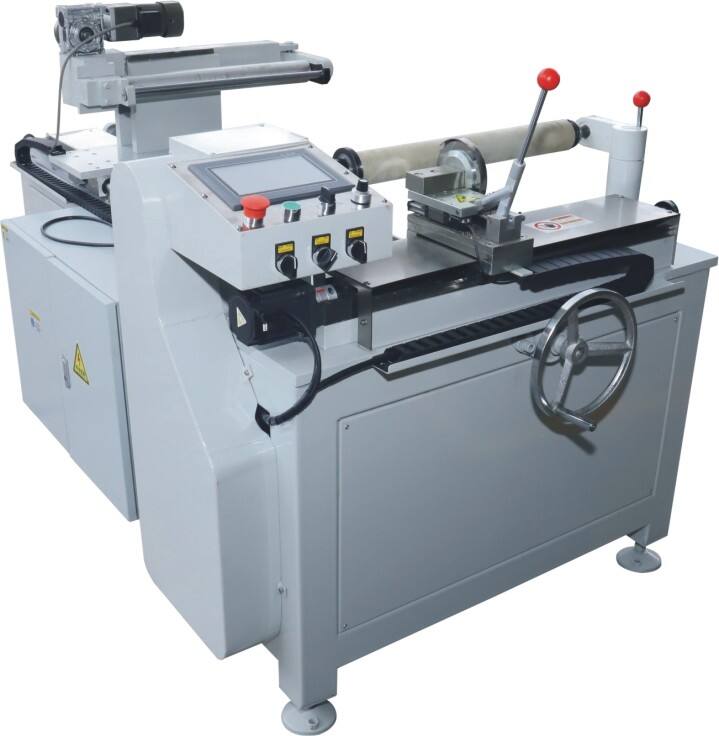

Semi-Automatic Slitting and Cutting Machine
Economical and practical with flexible operation. Manual feeding and positioning, with the equipment precisely executing slitting and cutting. Suitable for multi-batch, small-batch production, offering high value for money. An ideal entry-level choice for small and medium-sized enterprises.

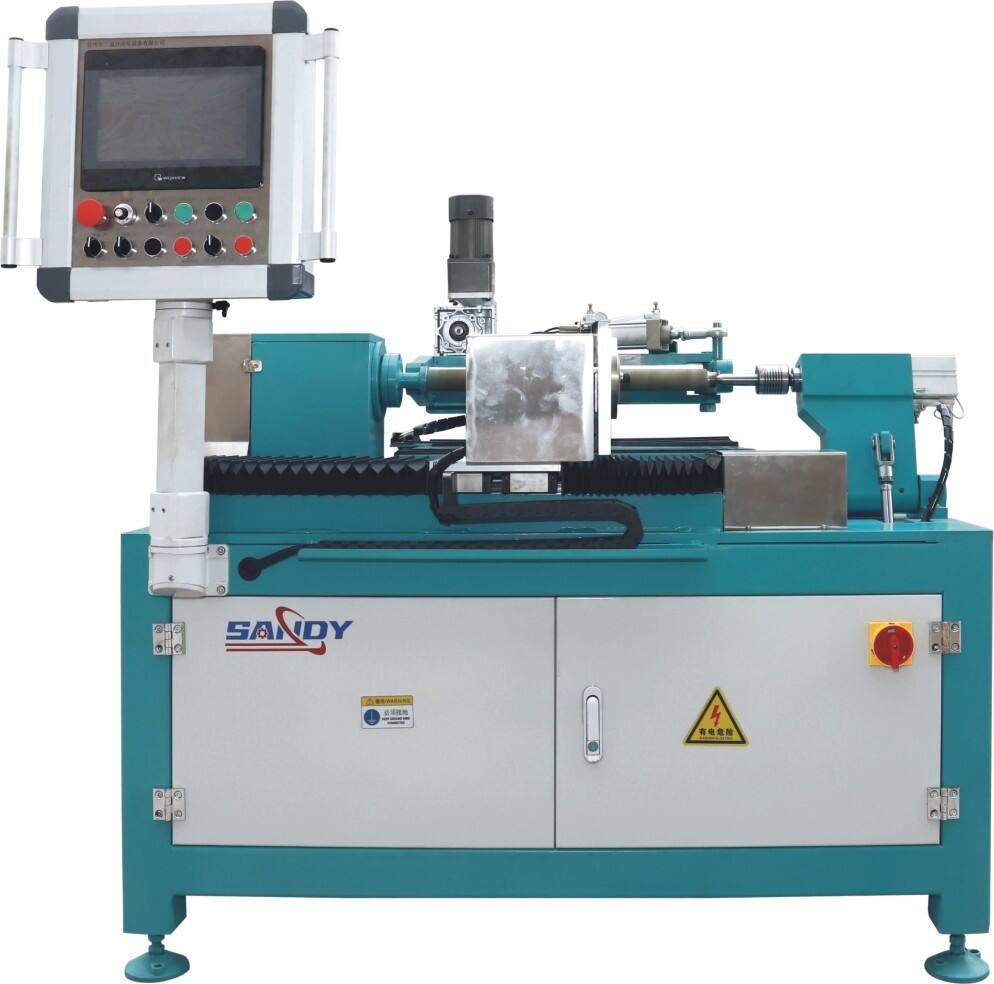

Fully Automatic Slitting and Cutting Machine
Intelligent and efficient, saving time and labour. Integrates automatic feeding, precise web guiding and cutting with one-touch , significantly boosting output and consistency. Designed for large-scale, high-standard continuous production, it is the preferred choice for modern automated factories.
- Introduction
Introduction
Customisable types：
Semi-Automatic Slitting and Cutting Machine
- Cutting range 195–2000 mm, width 520 mm. Features manual deviation correction, electric adjustment and manual tensioning, with variable frequency speed control. Voltage: AC 220V, power: 2.2 kW.
- Cutting range 195–3000 mm, width 520 mm. Manual deviation correction, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2KW.
- Cutting range 195-4500mm, width 520mm, manual deviation correction, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2kW.
- Cutting range 300-6000mm, width 520mm, manual web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2kW.
- Cutting range 195-3000mm, width 520mm, electric web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2kW.
- Cutting range 300–4000 mm, width 520 mm, electric web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2KW.
- Cutting range 300-4500, width 520mm, electric web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2KW.
- Cutting range 350-5000 mm, width 580 mm, electric web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 3KW.
- Cutting range 350–6000 mm, width 580 mm, electric web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 3KW.
Fully Automatic Slitting and Cutting Machine
- Automatic Cutting Machine: Cutting range 130-800 mm, width 490 mm, manual alignment, manual adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 1.1KW.
- Cutting range 150-800, width 500, electric web guiding, manual adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 1.1KW.
- Cutting range 195-3000mm, width 520mm, manual web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2kW.
- Cutting range 195–3000 mm, width 250 mm, manual web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2KW.
- Cutting range 300–5000 mm, width 520 mm, manual web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2kW.
- Cutting range 195–3000 mm, width 520 mm, electric web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2KW.
- Cutting range 260–4000 mm, width 520 mm, electric web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2KW.
- Cutting range 350-5000, width 520, electric web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2KW.
- Cutting range 350–6000 mm, width 520 mm, electric web guiding, electric adjustment and manual tensioning, variable frequency speed control. Voltage AC220V, power: 2.2KW.
| Primary Configuration | |
| Servo system: | Wuxi Xinjie |
| Geared motor: Ningbo Zhongda | Ningbo Zhongda |
| Switching power supply: | Taiwan Mean Well |
| Circuit breaker relay: | Tianzheng |
| Touchscreen + PLC: | Sandi |
| Voltage: | AC 220-240V 50Hz/60Hz |
Note: Cutting large belts and thickened belts requires a high-power motor operating at AC 380V.
Components from major international brands may be selected according to customer requirements. Pricing is subject to adjustment based on actual circumstances.
