TCW-25 High Speed Dragon Belt Two-for-one Twister Drive Belt
TCW-25 High Speed Dragon Belt Two-for-one Twister Drive Belt Made of polyester material, with good dimensional stability, no stretching or relaxation after tensioning, no shedding, no interface, good temperature resistance, good oil resistance, and no delamination.
- Introduction
Introduction
Features:
- High tensile strength
- Non-deforming
- High flexibility
- Anti oil and acid resistant
- durable and long-lasting
- Heat-resistant
- Seamless
Product parameters:
| Model | TCW-25 |
| Friction Layer Material | HNBR Rubber |
| Friction Layer Surface Structure | Rough Texture |
| Friction Layer Color | Black |
| Tensile Layer Material | Polyester (PET) |
| Cover Layer Material | NBR Rubber |
| Cover Layer Surface Structure | Coarse Texture |
| Cover Layer Color | Light Green |

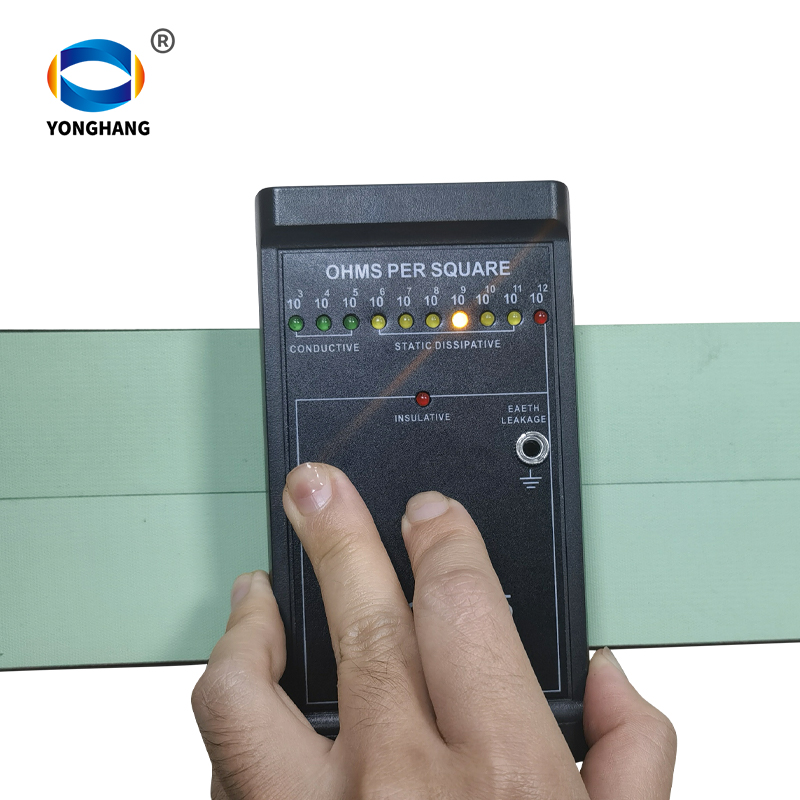

| Permanent Antistatic | Permanent Antistatic |
| Belt Thickness | 2.3mm |
| Belt Weight | 2.5kg/m² |
| Minimum Pulley Diameter | 35mm |
| 1% Elongation Tensile Strength | 12N/mm² |
| Allowable Tensile Strength | 25N/mm² |
| Permissible Operating Temperature | -20°C to 110°C |
| Maximum Manufacturable Width | 520mm |
| Oil Resistance | High |
| Torsion Resistance | Good |
| Delamination Resistance | Good |
| Joint Type | Seamless construction, no joints |
