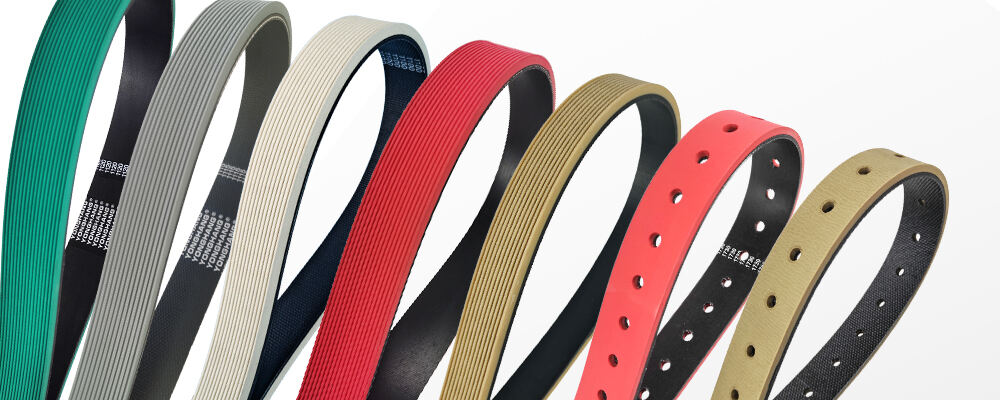

Folder Gluer Belts
YONGHANG Folder Gluer belts are extensively used in paper folding and Pasting industries for better performance. These Folder Gluer belts are widely acknowledged for excellent flexibility, optimum grip and premium friction with excellent abrasion resistance.
- Introduction
Introduction
Folder Gluer belts are found on machines that are specifically designed to make the manufacturing of boxes and cardboard packaging an automated process. The machines, or conveyors, can be quite complex in design and require the precision running of multiple belts in order to perform their task.
Folder Gluer Belts are potential replacement belts for folder gluers such as Bobst, IPBM, Jagenberg, Kohmann, Post, Tanabe, Western Slope (WSI), Vega, J & L, Signature, SBL, Sugano, DGM.
The machines often run at high speeds allow high volume output to be achieved. This is far quicker than by hand and ensures packaging is supplied at a cost effective level.
Folder gluer machines can vary in size and design and can also produce a variety of packaging in all shapes and sizes. Because of this belt selection can vary depending on the type of product being produced
There there tends to be two types of folder gluer belts to carry out this task as follows:

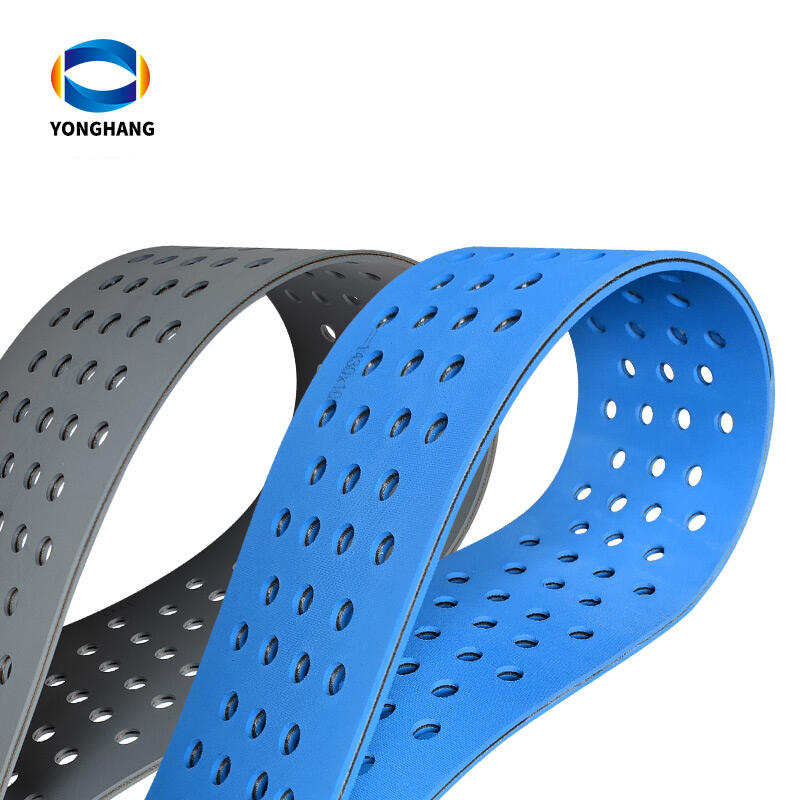

Rubber Feeder belts
These Rubber Feeder belts are mainly used in a feeder of carton folding machine, it helps in friction feeding of mono cartons made up of a duplex board and corrugated boxes.
YONGHANG Rubber Feeder belts provide excellent reversed bending properties, high abrasion resistance, and outstanding dimensional stability. Their constant and safe grip provides precise folding and the belts leave no marking on the transported goods.
Rubber Feeder belts is a common conveyor belt, which is not only used in Folder Gluer machine, but also used in many machines. Generally speaking, the belt of Folder Gluer machine is made of seamless mould, Linatex Rubber coating has been done on these Rubber Folder Gluer Belts from 35 to 65 shore. These rubber Folder Gluer Belts are acknowledged for hardness and available in 6 mm. to 10 mm.
Rubber Feeder belts in the work of running, very stable, good paper feeding effect, can be used for a long time. Rubber Feeder belts also has a special processing method of punching,grooves, if you want to customize Rubber Feeder belts , pls provide your own detailed needs.
Feeder belts Coating:
- 35~65 Duro Shore A
- Excellent Grip
- Abrasion Resistance
- Strong Tensile Cord
- Oil Resistant (Upon Request)
- Seamless (Upon Request)
- Color: Red, Green, Grey, Blue, Brown，White
Feeder belts Features:
- Endless – No joints or splicing
- Thermal Bonding – Guards against coated delamination
- Bi-Directional – Precision ground coated ensure adaptability
- Custom Thickness
- Customized coated available
- Customized bottom traction layer
- Customized groove /holes
Feeder belts Stock Specification:
| Specification | Inside length(mm) | Width(mm) | Thickness(mm) |
| 980*25*8 | 980 | 25 | 8 |
| 1000*25*8 | 1000 | 25 | 8 |
| 1032*30*8 | 1032 | 30 | 8 |
| 1032*30*6.5 | 1032 | 30 | 6.5 |
| 1050*25*8 | 1050 | 25 | 8 |
| 1100*25*8 | 1100 | 25 | 8 |
| 1115*25*8 | 1115 | 25 | 8 |
| 1120*25*8 | 1120 | 25 | 8 |
| 1150*25*8 | 1150 | 25 | 8 |
| 1150*30*8 | 1150 | 30 | 8 |
| 1200*25*8 | 1200 | 25 | 8 |
| 1250*25*8 | 1250 | 25 | 8 |
| 1280*25*8 | 1280 | 25 | 8 |
| 1280*40*8 | 1280 | 40 | 8 |
| 1350*25*8 | 1350 | 25 | 8 |
| 1350*40*8 | 1350 | 40 | 8 |
| 1535*25*8 | 1535 | 25 | 8 |
| 1535*30*8 | 1535 | 30 | 8 |
| 1535*35*8 | 1535 | 35 | 8 |
| 1535*40*8 | 1535 | 40 | 8 |
| 1535*50*8 | 1535 | 50 | 8 |
| 1535*60*8 | 1535 | 60 | 8 |
| 1535*50*8 2-1 Holes | 1535 | 50 | 8 |
| 1535*60*8 3-2 Holes | 1535 | 60 | 8 |
| 432XL-25+6 | 1097.28mm | 25 | 8.3 |
| 532XL-40+6 | 1351.28mm | 40 | 8.3 |
Polyester Folder Gluer Belts
These style of belts are becoming more popular as they are easy to splice together. This method means the belt material can often be supplied in roll with a special splicing heater that the end user can use themselves. This saves time and cost.
In the field of color box packaging, we have the most complete range of gluing machine belts in the market, and we can customize rolls up to 20M in length and 800mm in width, 3mm to 6mm thickness choose ，and in order to serve our customers quickly, we are equipped with the most advanced splicing equipment in the industry, so that we can achieve high quality service with same day delivery of orders as soon as possible.
Features:
Polyester belts also have NBR surface coating however they differ in the carrier, or carcass, is more flexible being polyester. This means they have excellent longitudinal flexibility, flex fatigue and reverse bending properties.
Our Polyester Folder Gluer Belts are 98% efficient, saves power as compared to any other conventional belting system and have to trouble free operational life. Known to have low slippage, very low-speed variation and high heat resistance, the belts offered by us are almost elongation-free, absorbs shock and are light in weight. Our clients can avail these at market leading prices.
Main Industries:
Packaging Industry
Folder Gluer Machine
Corrugated Box Industries
