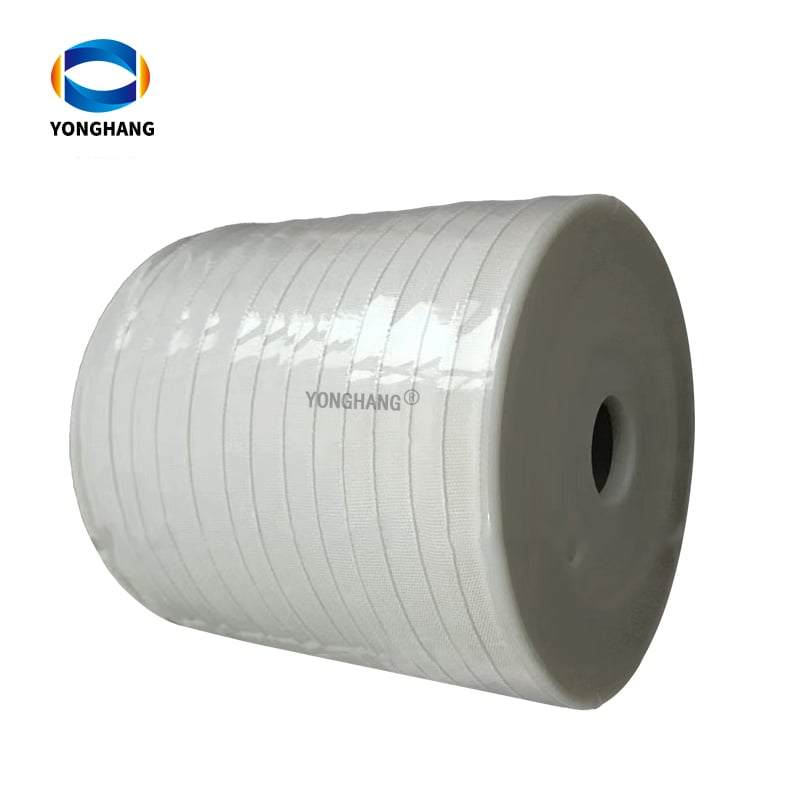

0.5mm Thin Heat-Stabilized Polyester Ironer Guide Tape | 12mm 15mm 18mm Widths

Yonghangbelt 0.5mm thin-profile heat-stabilized polyester ironer guide tape is a precision-engineered narrow guiding component designed specifically for lateral belt tracking and edge positioning in commercial steam flatwork ironing systems. Manufactured from high-tenacity continuous filament polyester yarns and processed through a controlled heat-setting treatment, this guide tape delivers excellent thermal dimensional consistency and maintains stable tension when operating continuously at temperatures up to 180°C, fully matching the working conditions of standard polyester and blended flatwork ironer belts.

The precision-calibrated 0.5mm gauge features an ultra-thin low-profile design that sits flush within ironer guide rail channels. It eliminates bulky protrusions that could catch, snag or leave indent marks on delicate linen items, while maintaining consistent contact with guide rollers to deliver steady, accurate alignment performance. This slim construction also allows it to fit into compact guide groove systems on most modern flatwork ironer models.

It is stocked in three universally adopted industry standard widths: 12mm, 15mm and 18mm, engineered for direct compatibility with the guide rail and edge positioning systems of most mainstream commercial laundry ironer brands. Custom widths and bulk roll lengths can also be produced to suit specific machine retrofit requirements and facility maintenance schedules.

The high-modulus polyester substrate delivers ultra-low elongation under sustained operating tension, removing the need for frequent re-tensioning adjustments and preserving consistent tracking accuracy over extended production runs. Its abrasion-reinforced selvedges are formulated to withstand constant sliding friction against ironer guide rails and edge hardware, significantly reducing edge fraying and premature wear compared to economy-grade untreated guide tapes.

An integrated anti-static surface finish dissipates static charge buildup during high-speed operation, preventing loose linen fibers and lint from adhering to the tape surface and ensuring smooth, uninterrupted linen feeding through the ironer and folder inlet.

Installed along both edges of the main flatwork ironer belt, this guide tape maintains precise lateral positioning of the belt body, minimizes belt wander, mis-tracking and uneven edge wear, effectively extending the service life of the main ironer belt and reducing unplanned maintenance downtime. It serves as a cost-effective, reliable wear part for hotel laundries, hospital linen rooms and medium to large industrial laundry facilities.

Key Features

• 0.5mm precision-calibrated thin profile: Sits flush within guide rail channels, eliminates bulky protrusions that could snag or mark delicate linens, and fits compact guide groove systems.
• Heat-set polyester construction: Rated for 180°C continuous operation, delivers excellent thermal dimensional stability and resists shrinkage even under prolonged steam-heat exposure.
• Three standard stocked widths: Available in 12mm, 15mm and 18mm industry-standard sizes, directly compatible with most mainstream flatwork ironer guide rail systems.
• Low-elongation high-tenacity substrate: Maintains consistent tension under long-term load, reduces frequent re-tensioning maintenance and preserves steady tracking accuracy.
• Abrasion-reinforced selvedges: Withstands constant sliding friction against guide rails, minimizes edge fraying and extends tape service life in continuous operation.
• Anti-static surface treatment: Dissipates static charge, prevents lint and linen fiber adhesion, and ensures smooth linen feeding through ironing and folding processes.
• Precision belt tracking function: Maintains accurate lateral alignment of the main flatwork ironer belt, reduces wandering, uneven edge wear and unplanned downtime.
• Bulk roll & custom options: Supplied in bulk rolls for on-site cutting; custom widths and roll lengths available to match specific machine and maintenance requirements.

Specifications

Applications

Commercial hotel laundries, hospital linen processing facilities, industrial laundry plants; flatwork ironer belt tracking guidance, edge positioning systems, linen feeding alignment for ironing and folding machinery.
