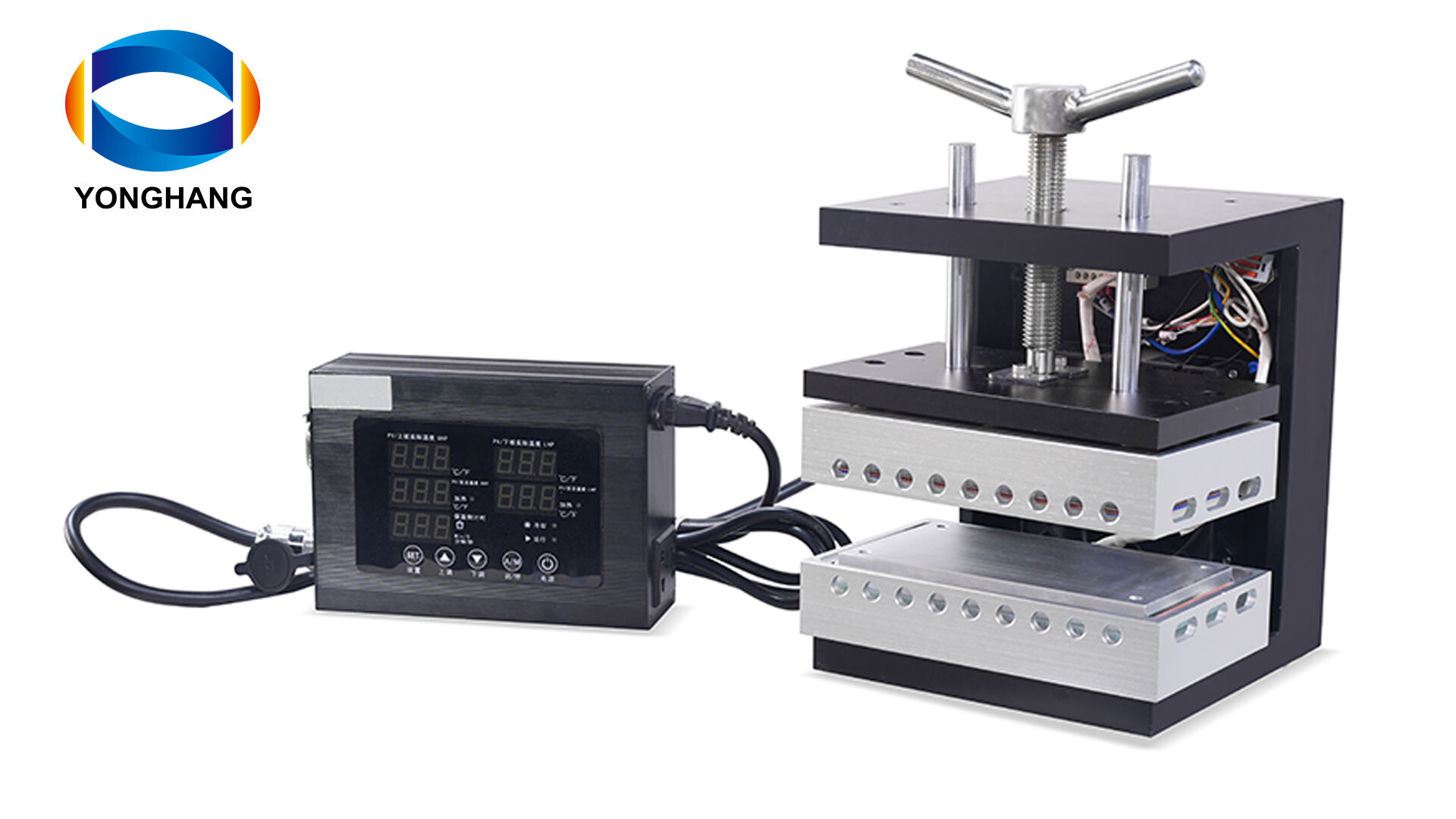

T10 Compact Timing belt Splicing Joint Hot Press Machine
YONGHANG Splicing Joint Hot Press Machine employs microcomputer temperature control and a constant pressure system to achieve precise alignment and seamless fusion of timing belt tooth profiles, with joint strength exceeding 85% of the original belt body. The compact synchronous belt splicing machine condenses precision hot-melt technology into a portable unit, addressing the industry pain points of ‘difficult maintenance and slow repair turnaround’ for micro-transmission systems. By combining laboratory-grade precision with on-site convenience, it provides the optimal ‘in-situ repair’ solution for high-value equipment, eliminating the need for factory-return maintenance in precision transmission upkeep.
- Introduction
Introduction
Product Features:
- Employing a microcomputer control system ensures precise alignment and seamless fusion of each tooth on the synchronous belt, with joint strength exceeding 85% of the original belt body. This fundamentally guarantees smooth transmission and durability.
- The equipment is highly compact and portable, enabling on-site maintenance directly at the machinery location. This eliminates the cumbersome process and lengthy wait associated with dismantling and returning to the factory, significantly reducing downtime.
- Integrated precision temperature and pressure control modules standardise complex process parameters, reducing reliance on operator experience. Novices can quickly master the equipment while maintaining superior joint quality.
- This portable unit successfully integrates precision hot-melt technology—typically achievable only in specialised environments—enabling users to achieve high-quality joints directly on-site in workshops, machine rooms, and similar locations.
- Power belts,sheet base belts,transmission belts,polyurethane synchronous belts,conveyor belts,etc can also be joints.
Product parameters:
| Model | BN-T10 |

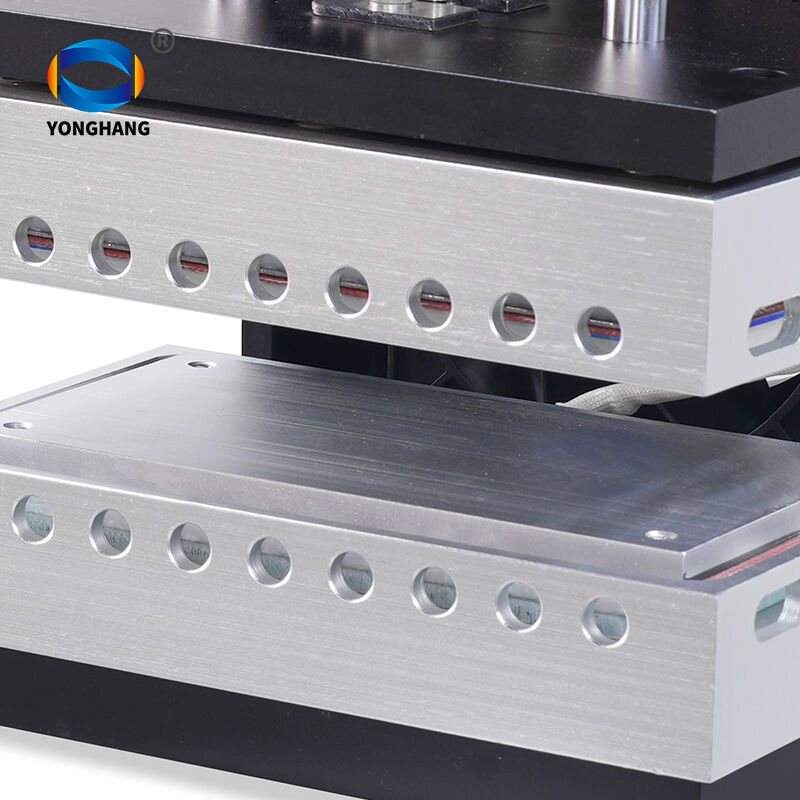

| Heating method | The upper and lower molds are heated independently |
| Size of the heating plate | 180mm*100mm |
| Heating temperature | Max 200℃ |
| Machine size | 220mm*200mm*380mm |
| Cooling time | 15—25 min |

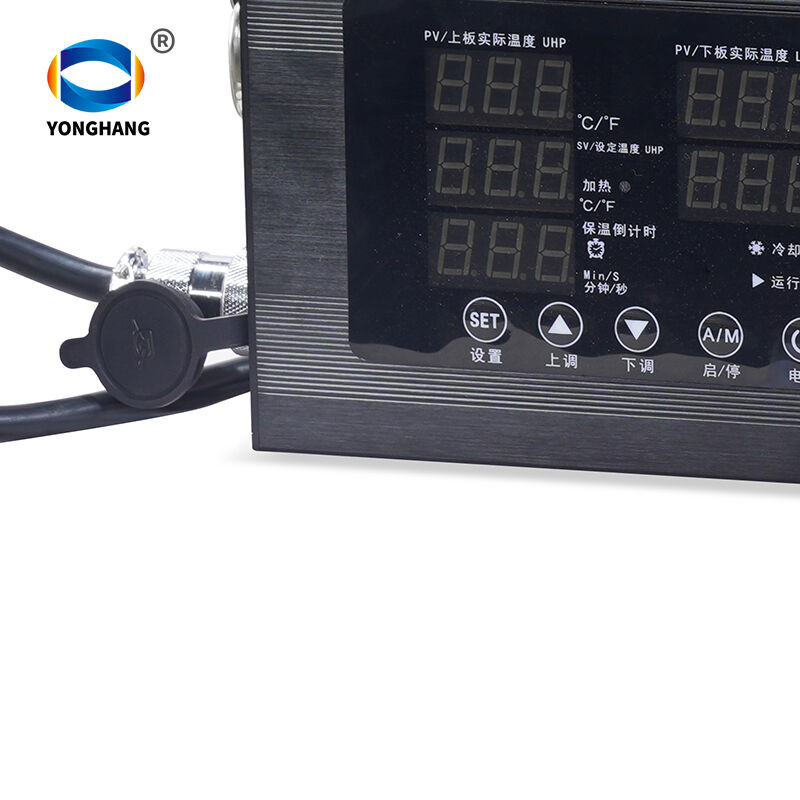

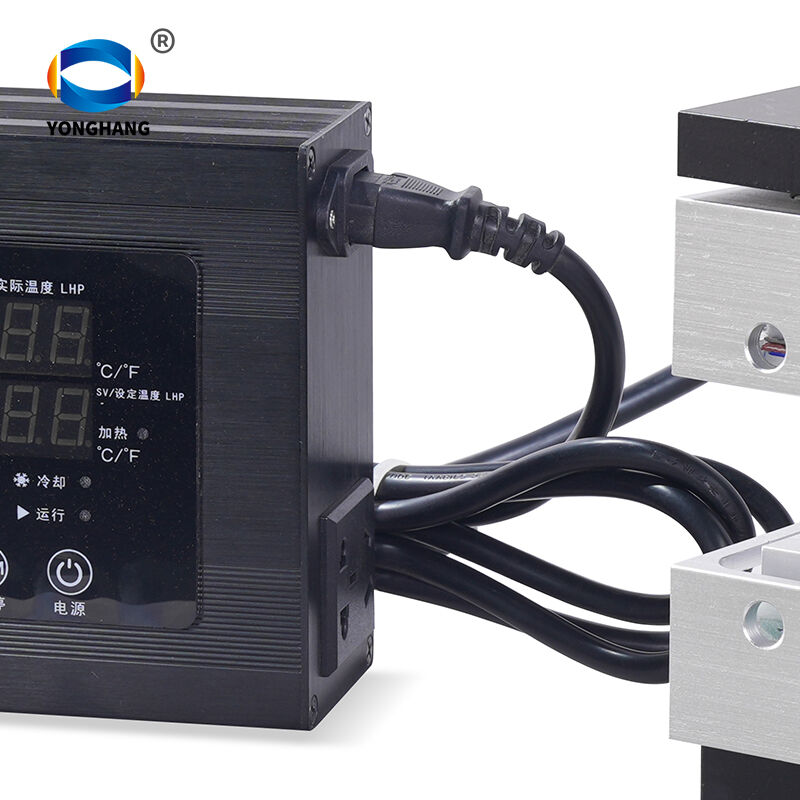

| Temperature control box | Fully automatic control |
| Belt connection width range | Customizable templates are available |
| Weight | 41KG |
| Working voltage | 220V |
| Power | 680W |
| Shortest response | 480mm |
| Connection range | Power belts,sheet base belts,transmission belts,polyurethane synchronous belts,conveyor belts,etc |
