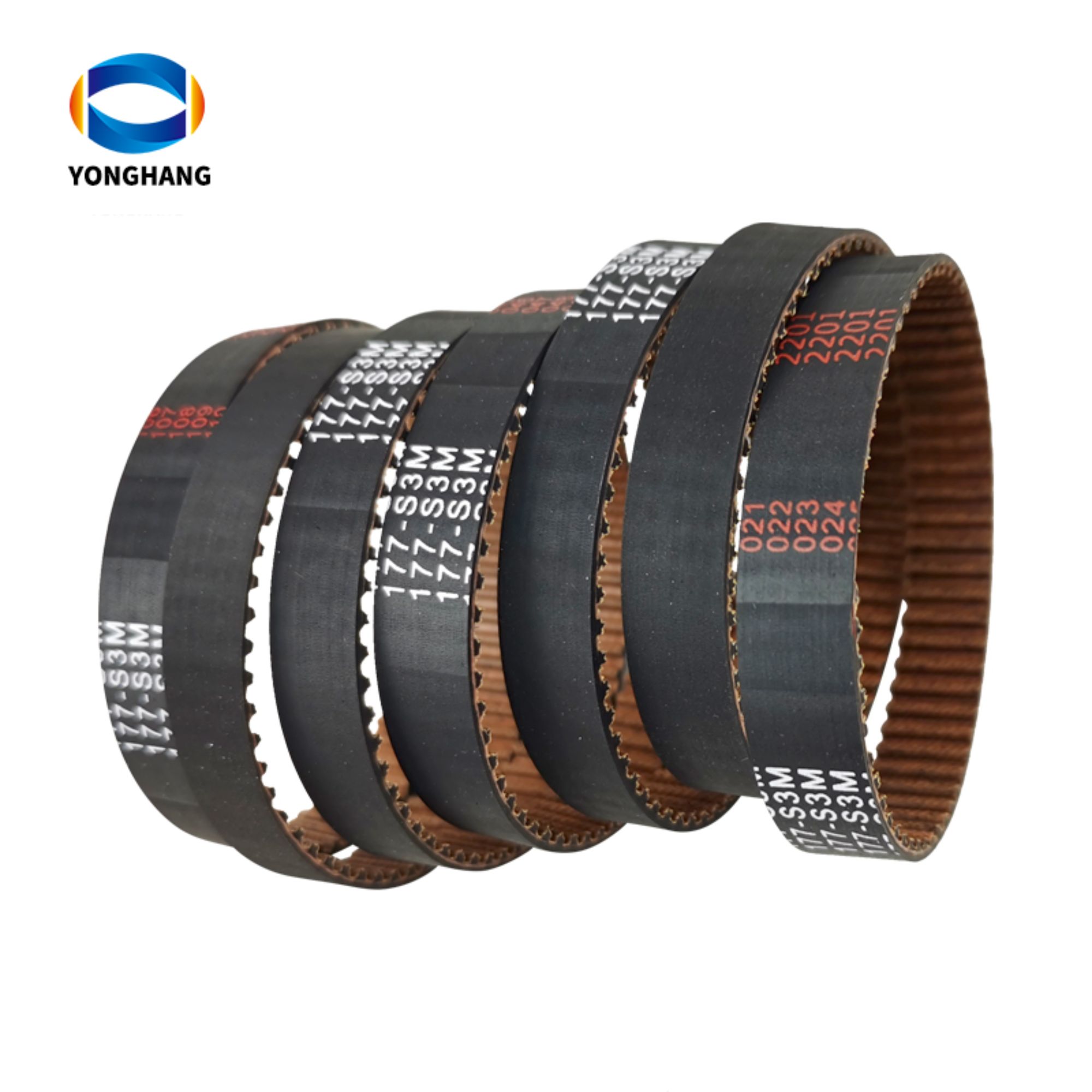

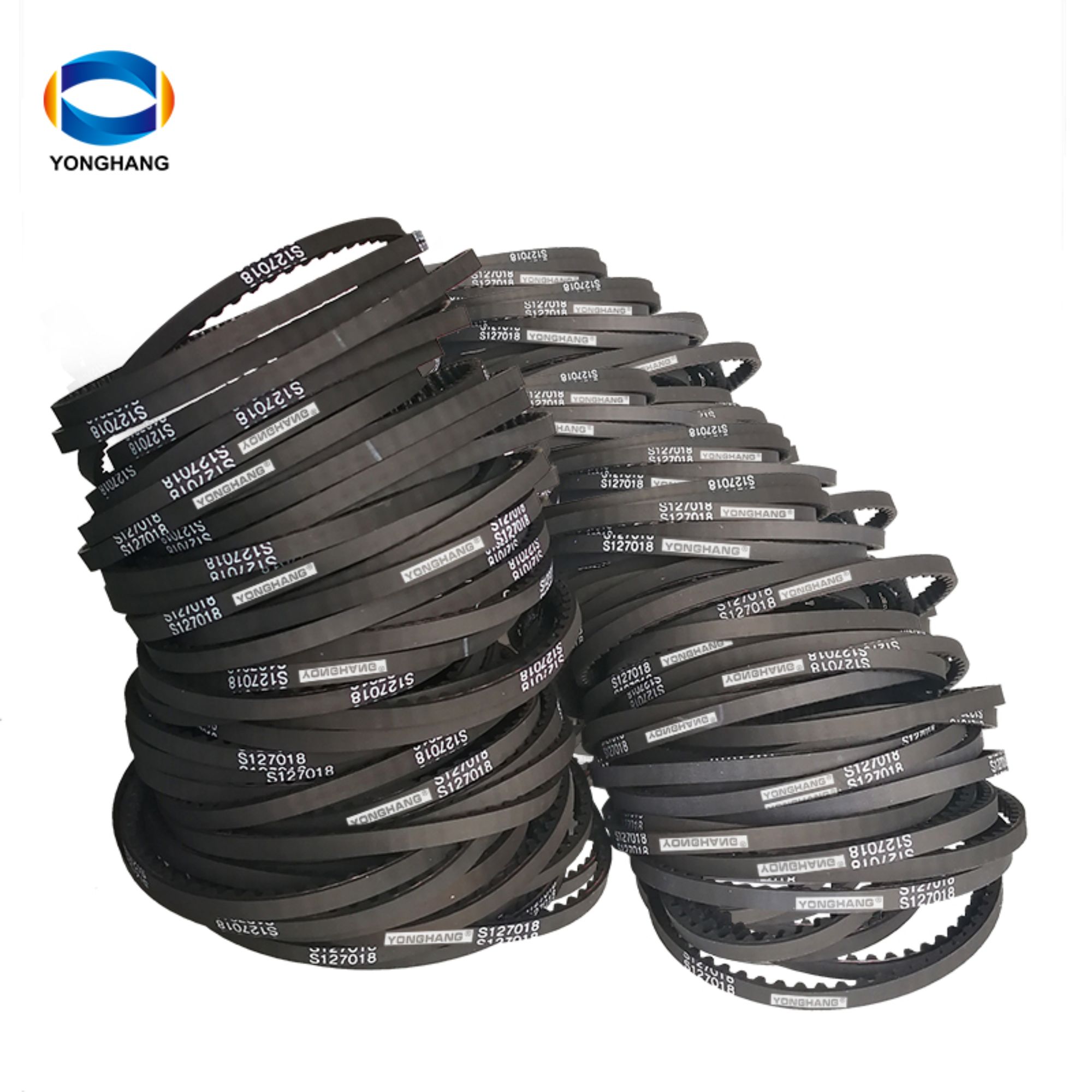

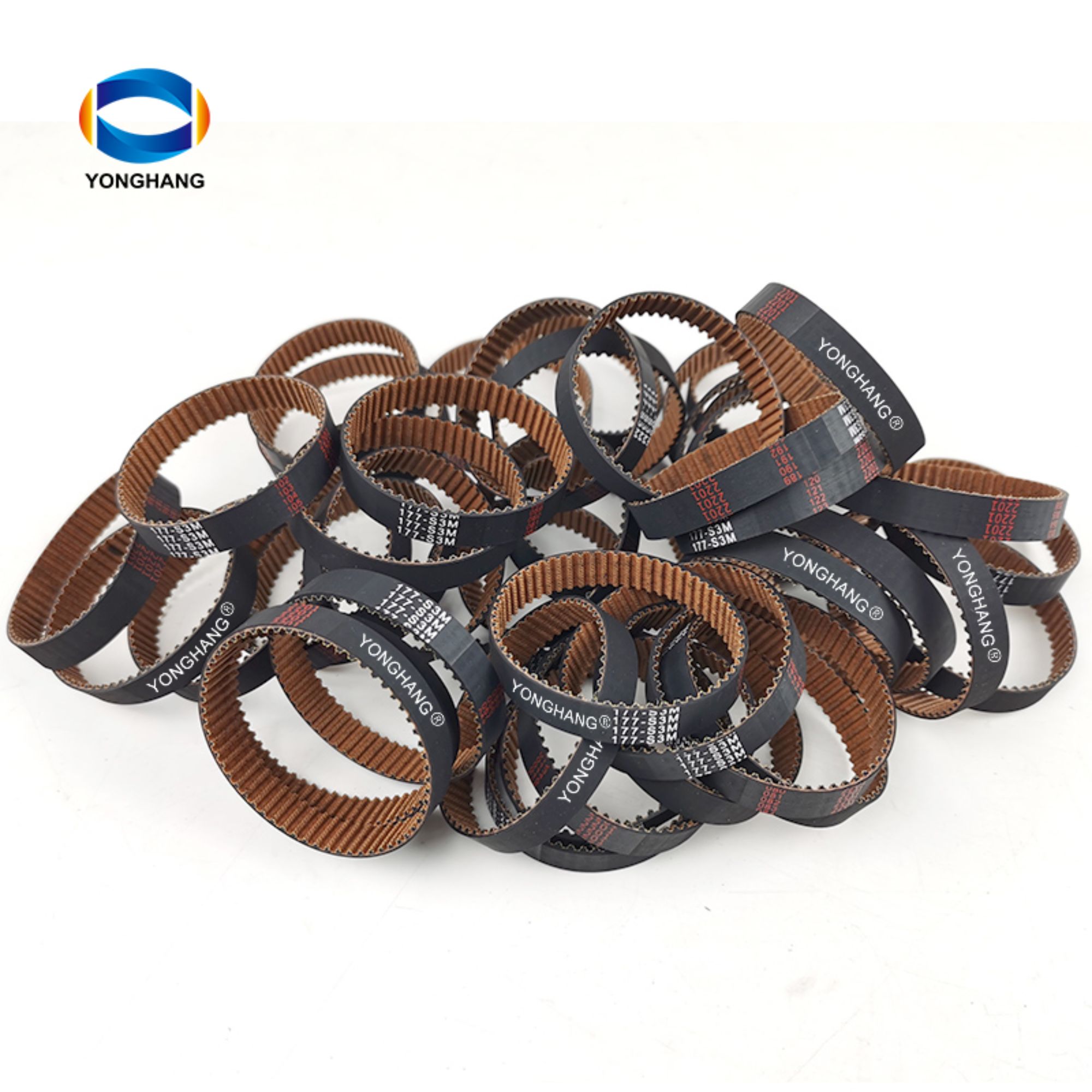

STD3M Rubber Timing Belts
De STD3M Rubber tandriem wordt standaard geleverd met Glasvezel draden. De STD3M Rubber tandriem heeft een tandsprong van 3mm, uiterst geschikt voor transport waar goede posititering vereist is. We kunnen de STD3M rubber tandriem volgens uw wensen aanpassen.
- Inleiding
Inleiding
Productdetails Timing riem STD3M | |
Kleur |
zwart |
Shore hardheid (A) |
75° Shore A |
Draden |
Glasvezelkoorden |
Breedte |
5-400mm |
Lengte |
Open lengte |
Naadloos (gegoten) | |
Werktemperatuur |
-20-+80C |
Standaard draden |
0.3 mm |
Breedte tolerantie |
+/- 0,5 mm |
Hoogte tollerance |
+/- 0,2 mm |
Lengte tolerantie |
+/- 0.3 mm |
Gewicht per 100 tand |
8.10g |
Minimum wiel diameter |
17mm |
Rubber timing belt STD3M- DA Symmetrische rangschikking van de twee-zijdige tanden
Rubber timing belt STD3M - DB Verschuivende rangschikking van de twee-zijdige tanden
Rubber timing belt STD3M - Perforaties /Schuren
Rubber tandriem - Nylon stof aan tandkant

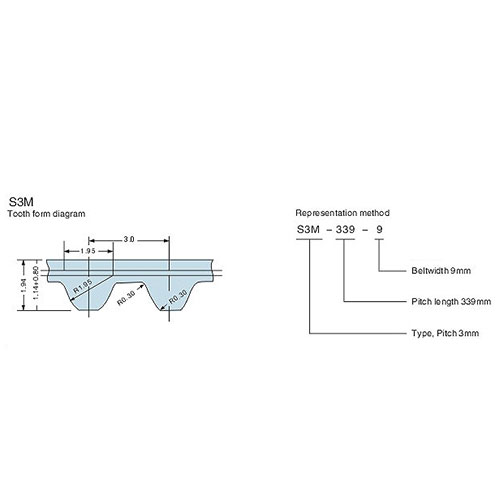

STD3M Rubber timingriem Maat:
| S3M | |||||
| Model | Model | Model | Model | Model | Model |
| S3M 114 | S3M 216 | S3M 315 | S3M 426 | S3M 528 | S3M 660 |
| S3M 117 | S3M 219 | S3M 318 | S3M 432 | S3M 534 | S3M 666 |
| S3M 120 | S3M 222 | S3M 321 | S3M 435 | S3M 537 | S3M 690 |
| S3M 123 | S3M 225 | S3M 324 | S3M 444 | S3M 540 | S3M 705 |
| S3M 126 | S3M 231 | S3M 327 | S3M 447 | S3M 546 | S3M 711 |
| S3M 129 | S3M 234 | S3M 330 | S3M 453 | S3M 549 | S3M 714 |
| S3M 135 | S3M 237 | S3M 333 | S3M 456 | S3M 552 | S3M 738 |
| S3M 138 | S3M 240 | S3M 336 | S3M 462 | S3M 555 | S3M 750 |
| S3M 141 | S3M 243 | S3M 339 | S3M 465 | S3M 558 | S3M 753 |
| S3M 144 | S3M 246 | S3M 345 | S3M 468 | S3M 561 | S3M 759 |
| S3M 147 | S3M 252 | S3M 348 | S3M 471 | S3M 564 | S3M 765 |
| S3M 150 | S3M 255 | S3M 351 | S3M 474 | S3M 570 | S3M 780 |
| S3M 159 | S3M 258 | S3M 354 | S3M 477 | S3M 573 | S3M 804 |
| S3M 162 | S3M 261 | S3M 357 | S3M 480 | S3M 579 | S3M 819 |
| S3M 165 | S3M 264 | S3M 363 | S3M 483 | S3M 582 | S3M 828 |
| S3M 168 | S3M 267 | S3M 366 | S3M 486 | S3M 585 | S3M 882 |
| S3M 171 | S3M 270 | S3M 375 | S3M 489 | S3M 588 | S3M 1188 |
| S3M 174 | S3M 273 | S3M 384 | S3M 492 | S3M 591 | S3M 1221 |
| S3M 177 | S3M 276 | S3M 390 | S3M 495 | S3M 594 | S3M 1227 |
| S3M 180 | S3M 282 | S3M 393 | S3M 498 | S3M 597 | S3M 1236 |
| S3M 183 | S3M 285 | S3M 396 | S3M 501 | S3M 600 | S3M 1254 |
| S3M 186 | S3M 288 | S3M 399 | S3M 507 | S3M 603 | S3M 1299 |
| S3M 189 | S3M 291 | S3M 402 | S3M 510 | S3M 606 | S3M 1401 |
| S3M 192 | S3M 294 | S3M 405 | S3M 513 | S3M 609 | S3M 1572 |
| S3M 195 | S3M 297 | S3M 408 | S3M 516 | S3M 621 | S3M 1596 |
| S3M 198 | S3M 300 | S3M 417 | S3M 519 | S3M 633 | S3M 1800 |
| S3M 201 | S3M 303 | S3M 420 | S3M 522 | S3M 636 | S3M 2115 |
| S3M 204 | S3M 309 | S3M 423 | S3M 525 | S3M 645 | S3M 2271 |
| S3M 207 | S3M 312 | S3M 657 | S3M 3000 | ||
| S3M 210 |
