Precision Embedded Magnetic Timing Belts

Precision Embedded Magnetic Timing Belts: The Future of Automated Sensing

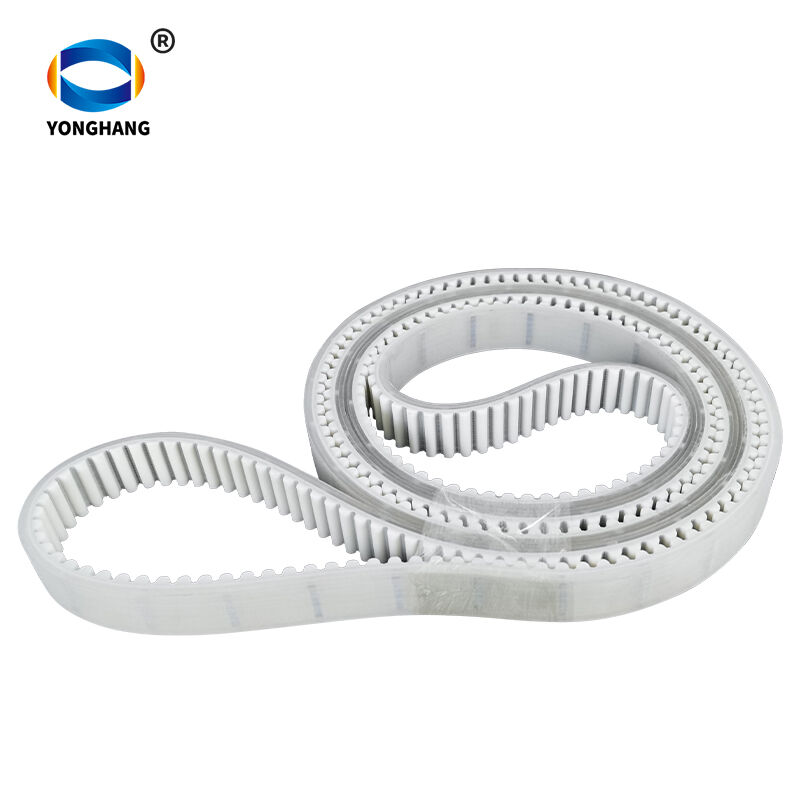

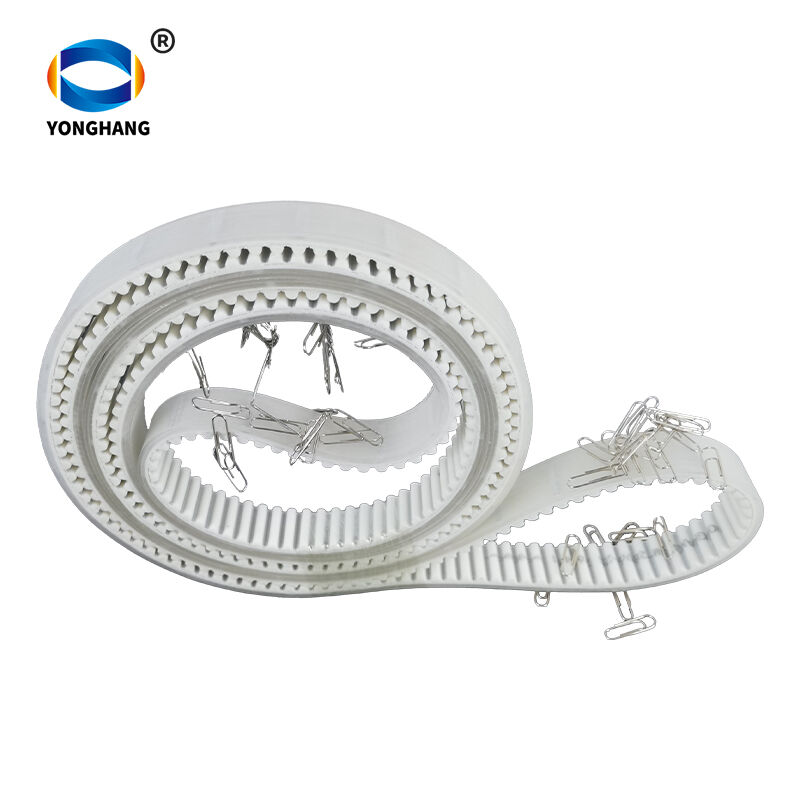

Yonghang’s Embedded Magnetic Timing Belts are engineered for industries requiring micro-precision positioning and automated feedback. By integrating permanent magnets directly into the body of a high-strength polyurethane timing belt, we enable your machinery to "communicate" with Hall effect sensors or reed switches without physical contact.

This technology eliminates the need for bulky external markers, providing a streamlined, low-profile solution for high-speed sorting, synchronized packaging, and smart conveyor systems.

Core Technical Features:

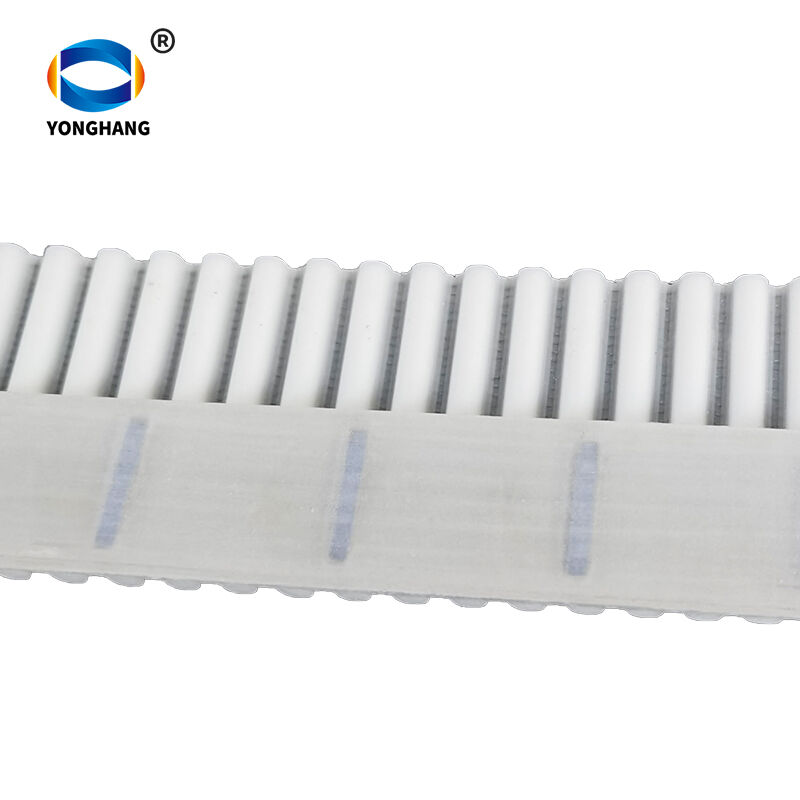

• CNC Precision Embedding: Each magnet is housed in a CNC-milled pocket, ensuring the magnet surface is perfectly flush with the belt’s back or teeth. This prevents mechanical interference with pulleys and rollers.

• Zero-Stretch Stability: Built with high-tensile steel or Kevlar cords, ensuring that the distance between magnets remains constant even under high-load or high-speed operations.

• Sealed for Durability: Magnets are hermetically sealed using a secondary vulcanization process or high-strength industrial adhesives, protecting them from oils, moisture, and debris.

• Custom Magnetic Polarity: We offer custom orientation (North/South) and specific magnetic field strengths (Gauss levels) to match your sensor sensitivity.

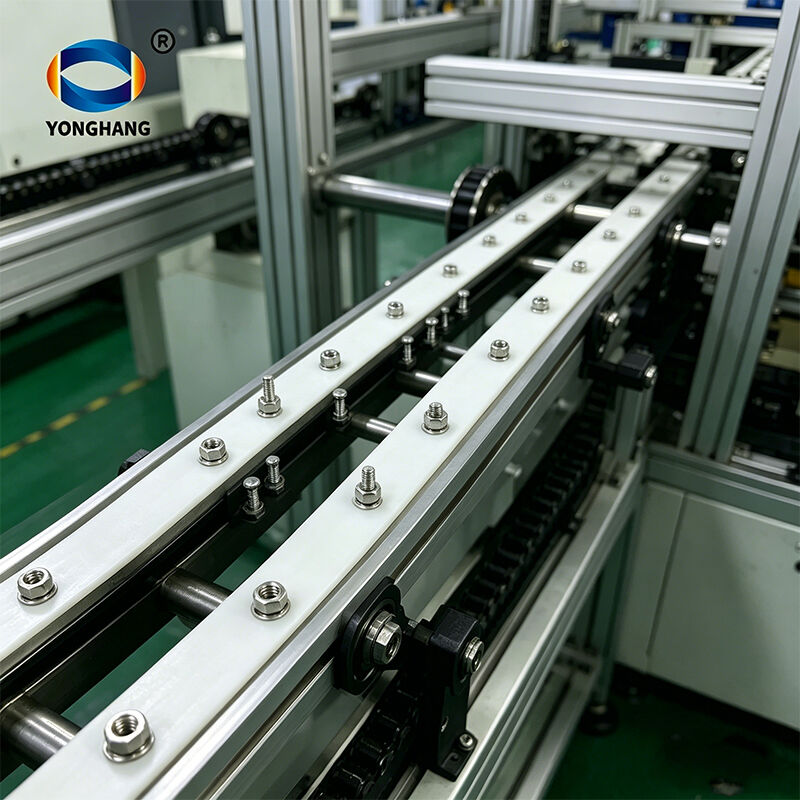

Typical Applications:

• Automated Sorting: High-speed parcel or component identification.

• Medical Lab Automation: Precise positioning of sample trays and vials.

• Packaging Machinery: Synchronizing multi-stage filling and sealing lines.

• Robotic Linear Actuators: Non-contact home-positioning and limit sensing.
