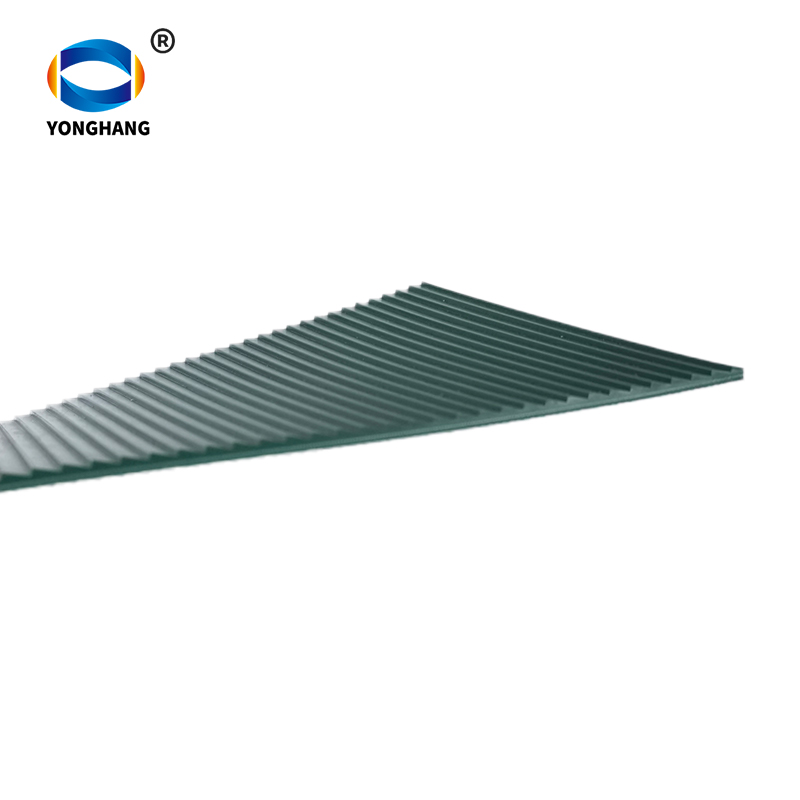

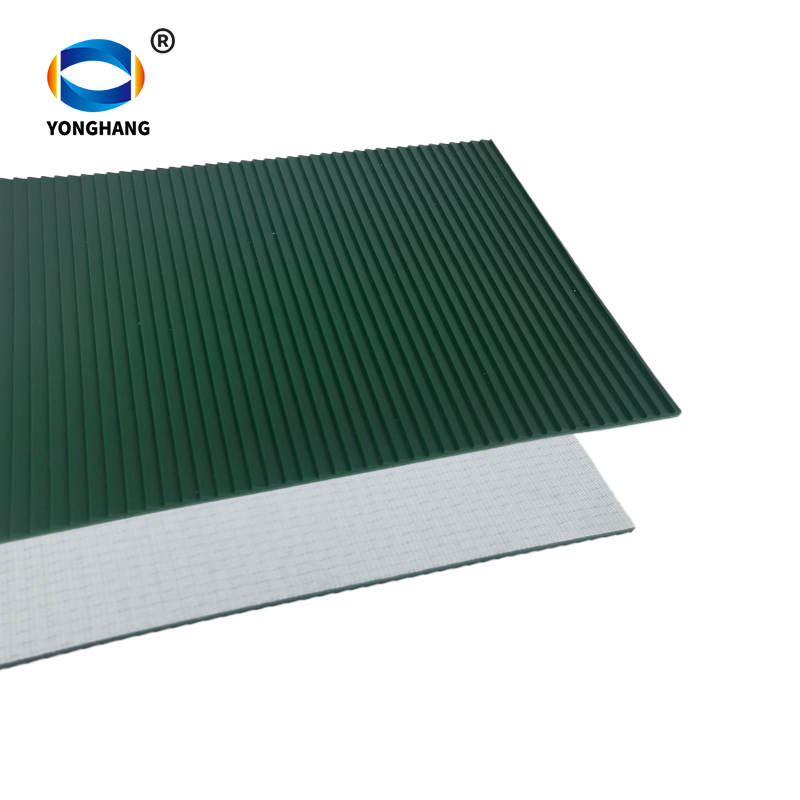

High-friction Washboard Pattern Green PVC Conveyor Belts
Optimize your material handling efficiency and prevent product backsliding with our high-performance washboard pattern green PVC conveyor belts. Explicitly engineered for modern logistics sorting, automated packaging lines, and warehouse distribution networks, this technical belt features a rugged, molded transverse rib profile that mimics a traditional washboard configuration. This unique geometric surface greatly enhances directional traction and surface friction, allowing cartons, totes, bags, and lightweight parcels to safely ascend or descend moderate inclines without slipping. Synthesized from a highly wear-resistant green PVC compound and reinforced by a low-stretch, multi-ply polyester carcass, our textured conveyor belting ensures superb tracking stability, minimal structural elongation, and exceptionally low operating noise over long-term production cycles.
- Introduction
Introduction
Technical & Performance Highlights :
Optimized Washboard Cleating: The continuous raised horizontal ridges act as integrated micro-cleats, providing high-traction stability on slopes where standard smooth-top belts fail.
Resilient Green PVC Top Cover: Specially formulated to resist abrasions, surface scuffs, and industrial oils, ensuring the rib pattern retains its sharp edges and gripping power over extended deployment.
Low-Friction Fabric Underside: Designed with a specialized whisper-quiet fabric bottom layer that reduces drag against the conveyor bed, lowering motor energy consumption and system wear.
Excellent Pulley Flexibility: Despite its aggressive gripping surface, the belt carcass remains highly flexible, tracking flawlessly over smaller pulley diameters without cracking or delaminating.
Product information:
| Product | Washboard Pattern Green PVC Conveyor Belts |
| specifications | Flexible customization |
| Surface | Washboard Pattern &V-shape Pattern |
| Width | Maximum 3000mm |
| Thickness | 4.5mm |
| Colour | green |
| Working temperature | -20℃~+60℃ |
| Material | PVC |
| Weight: | Approximately 5.3 kg/m² |
| Working Load at 1% Elongation | ≥15 N/mm |
| Coating Hardness | ≈65 Shore A |
| Joint treatment | hot finger– joining and Mechanical fasteners |
| Number of layers | 2 Ply/3 Ply |
| Minimum Pulley Diameter | 80mm |
Practical Applications of Green PVC Conveyor Belt Washboard Pattern
The PVC Conveyor Belt Washboard Pattern is designed for a wide range of industrial applications, especially where inclined conveying and anti-slip performance are critical:
- Agriculture: Conveying grains, rice, seeds, and other agricultural products
- Packaging & material handling: Transporting cartons and packaged goods
- Food industry: Processing lines for raw materials and finished products
- Logistics: Conveying goods in warehouses, ports, airports, and sloped areas
- Recycling industry: Moving recyclable materials such as plastics and metals
- Furniture manufacturing: Conveying wood panels and plywood on inclined production lines, reducing breakage risk
FAQ:
Q1: What makes the washboard pattern PVC belt ideal for slope conveying?
A: The washboard pattern consists of continuous, raised transverse ribs across the belt surface. These ribs create multiple physical contact boundaries that securely catch the base of packages or boxes, counteracting gravity during incline or decline travel. This allows for smooth, angled transit without needing bulky, large-cleated belts that require massive pulley clearance.
Q2: In which industries is this green textured PVC conveyor belt most commonly used?
A: Due to its excellent balance of grip and flexibility, this belt is heavily utilized in e-commerce fulfillment centers, postal and express sorting hubs, airport baggage handling networks, and secondary packaging lines for boxed goods, paper manufacturing, and electronics assembly.
