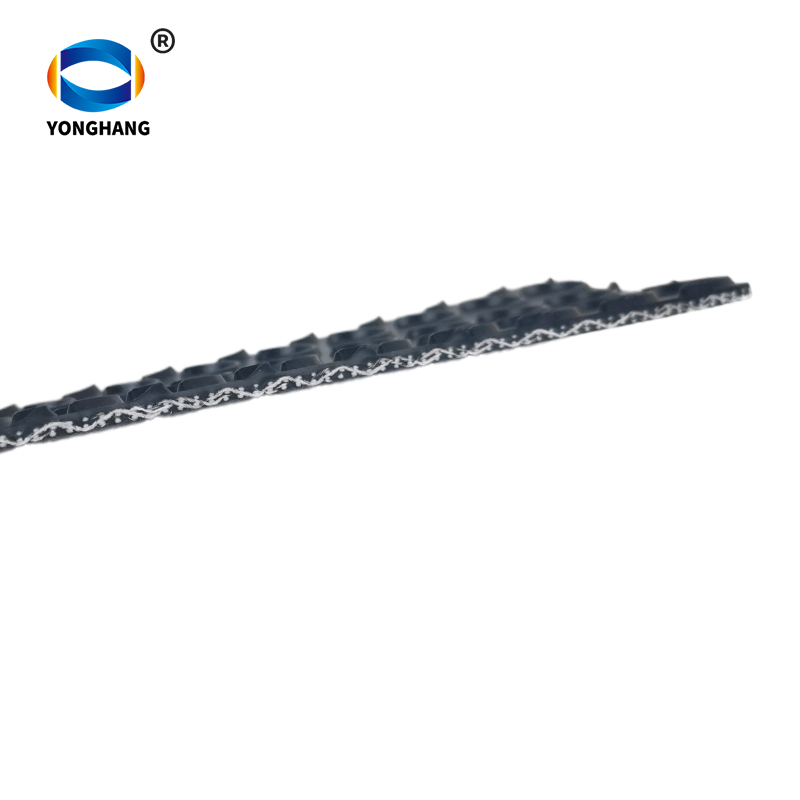

Black Pvc Moon-shaped Conveyor Belt

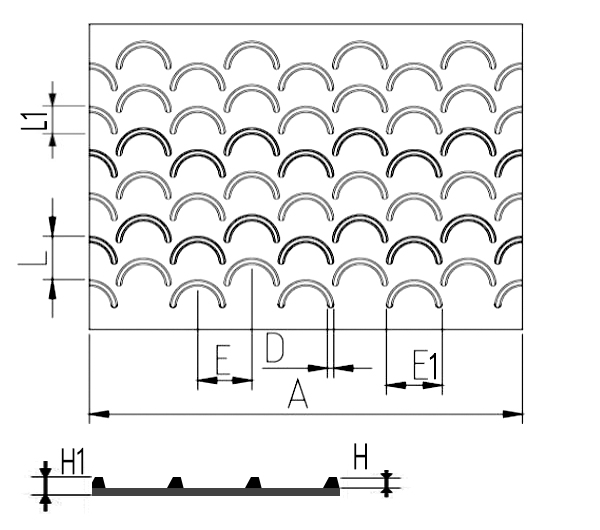

Accelerate your heavy-duty automated sorting and eliminate transit slippage with our commercial-grade black PVC moon-shaped conveyor belts. Engineered explicitly for challenging incline and decline configurations within industrial distribution networks, this high-traction belt features a sequence of precision-molded, crescent moon-shaped ridges across its top cover. The unique concave geometry of these ridges creates a continuous structural containment zone that acts like mini-cleats, trapping parcels, cylindrical components, and bulk aggregates securely to prevent backward drift or lateral sliding. Synthesized from a robust, carbon-stabilized polyvinyl chloride (PVC) compound and backed by a high-modulus, low-stretch structural carcass, this textured conveyor belting delivers immaculate tracking alignment and extended operational life under continuous multi-shift loads.

Introduction

Introduction

Technical & Profile Highlights:

Omnidirectional Gripping Power: The curved, crescent moon surface pattern maximizes the multi-angle coefficient of friction, providing far superior holding capability on steep gradients compared to standard smooth or diamond-top belts.
Concealing Black Compound: Formulated from an industrial-grade black PVC matrix that effortlessly hides grease, mechanical scuffs, and carbon dust, making it the ideal aesthetic and functional choice for heavy logistics environments.
High-Flex, Low-Stretch Foundation: Reinforced with a multi-ply interwoven polyester fabric core that offers superb longitudinal flexibility over smaller drive pulleys while completely eliminating permanent belt elongation.
Slider Bed Optimization: Outfitted with a specialized low-friction, whisper-quiet technical fabric backing on the underside to minimize system drag, optimize motor energy efficiency, and prevent tracking drift.

Parameters:

Brand	Yonghang
Top Material	PVC
Bottom Material	Polyester Friction
Width	3000 meters max(super wide)
Thickness	6.7mm/7.5mm/11mm
Structure	2 Ply/3 Ply
pattern	Staggered Herringbone
Color	Black
Working Load at 1% Elongation	≥10 N/mm
Tensile Strength	≥120 N/mm
Minimum Pulley Diameter	80mm
Working Temperature range	-20°C to 85°C
Top coating hardness:	70 ShA.

FAQ:

Q1: What makes the moon-shaped pattern superior for steep incline sorting?

A: Standard linear ribbed or diamond-patterned belts can allow cylindrical items or irregular packaging to roll backward. The moon-shaped (crescent) pattern features a curved, cupped geometry. This cupping effect cradles the base of loose products or boxes, containing them both longitudinally and laterally, which allows for much steeper conveying angles without the need for bulky, tall cleats.

Q2: When should I choose a black PVC conveyor belt over a green or white one?

A: Green belts are typically standard for light electronics and general warehousing, while white belts are reserved for sanitary food/pharmaceutical zones. A black PVC belt is preferred for heavy-duty industrial logistics, airport baggage handling, recycling lines, and automotive parts transit where exposure to dirt, oils, rubber marks, or industrial dust is common, as the dark color maintains a clean appearance over long cycles.
